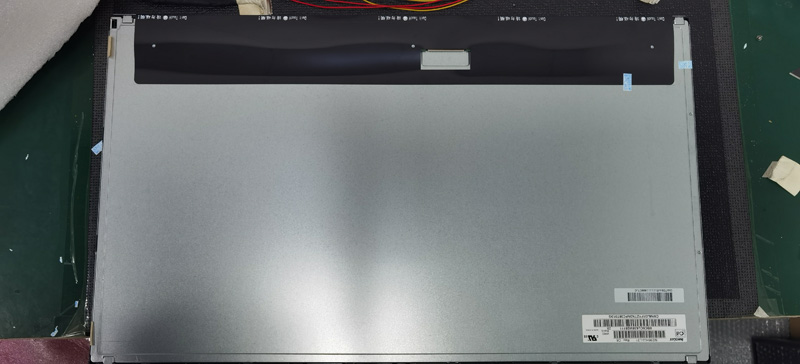

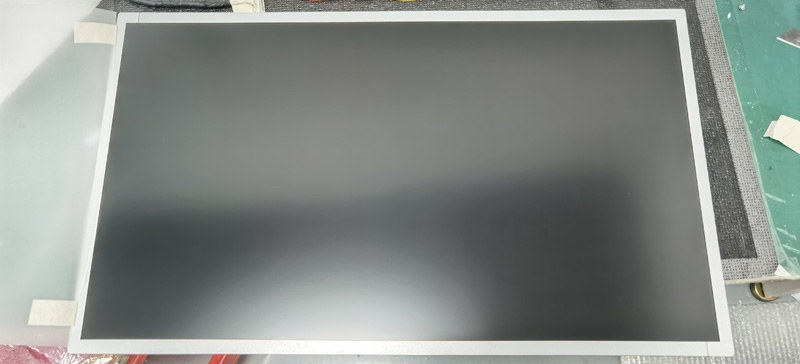

Application Details of Innolux Liquid Crystal Module M236HJJ-L31

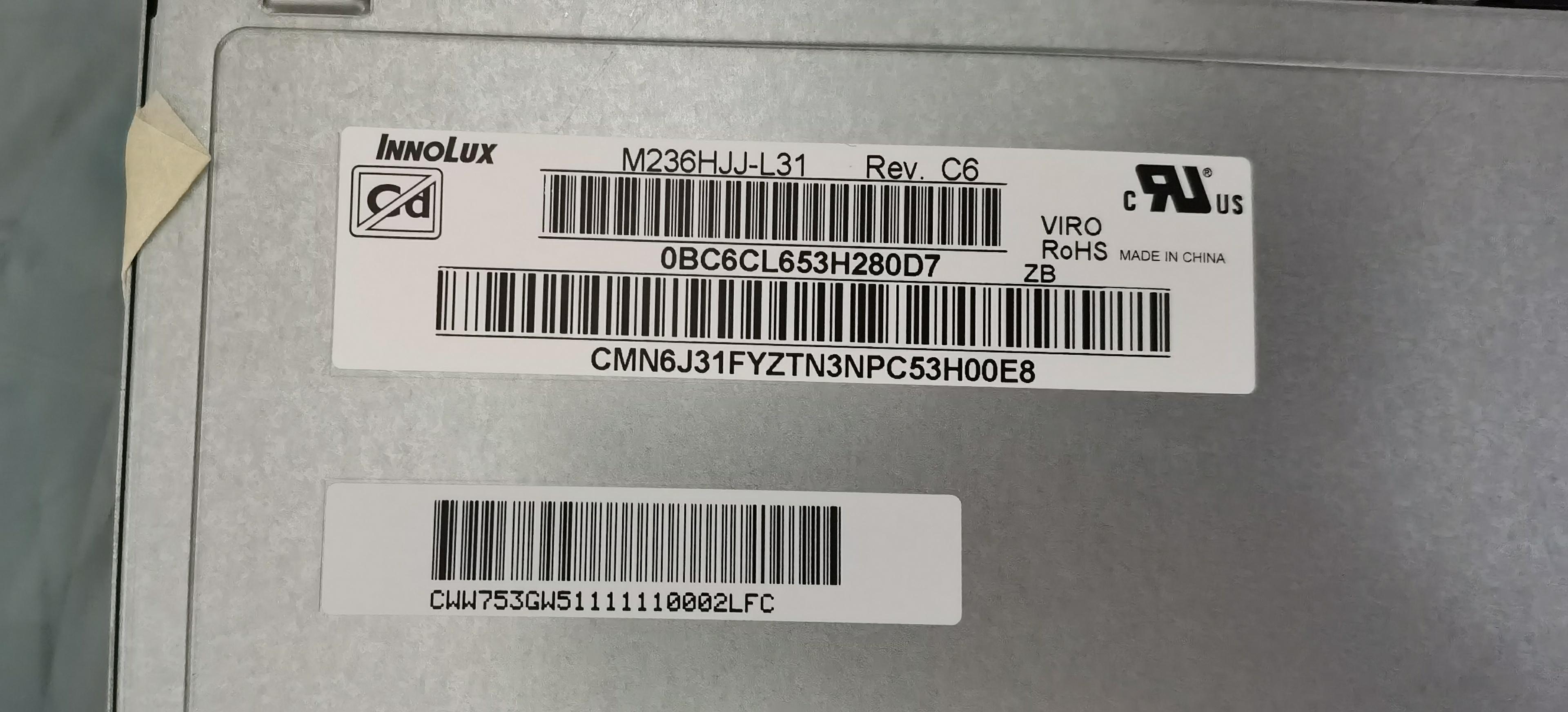

Basic Information: Manufacturer: Innolux Model: M236HJJ-L31
Type: Liquid Crystal Module, a-Si TFT-LCD Application Product: Computer Monitor
Diagonal Size: 23.6" Alias: -
Application Environment: Storage Temperature: -20 ~ 60 °C Operating Temperature: 0 ~ 50 °C
RoHS: RoHS Compliance Vibration Resistance: -

Pixel Characteristics: Resolution: 1920(RGB)×1080, FHD Dot Pitch (mm): 0.0905×0.2715 (H×V)
Pixel Arrangement: RGB vertical stripes Pixel Spacing (mm): 0.2715×0.2715 (H×V) [93PPI]
Structural Dimensions: Display Area (mm): 521.28(H) × 293.22(V) Opening Area (mm): 525.22(H) × 297.22(V)
Appearance Size (mm): 544.8(H) × 320.5(V) Appearance Thickness (mm): 11.5 (Max.)
Appearance Features: Physical Shape: Planar rectangle, with a frame Appearance Shape: -
Aspect Ratio: 16:9 (H:V) Landscape/Portrait: Landscape mode
Mounting Method: Side mounting holes (4-M3) on up, down bezel
Other Parameters: Weight: 2.31±0.11Kgs Surface Treatment: Matte surface (Haze 25%), Hard coating (3H)
Basic Information: Display Brightness: 250 cd/m² (Typ.) Contrast Ratio: 3000:1 (Typ.) (Transmissive)
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Display Mode: MVA, Normally black display, transmissive
Viewing Angle Direction: Full viewing angle Response Time (ms): 20 (Typ.)(G to G)
Color Performance: White Coordinates: X: 0.313; Y: 0.329 Supported Colors: 16.7M (8-bit)
Color Temperature: 6485K Luminance Uniformity: 1.33/1.39 (Typ./Max.)(9 points)
1931 Color Gamut: NTSC Ratio: 72% sRGB Coverage: 94%
Adobe RGB Coverage: 73% DCI-P3 Coverage: 75%
Rec.2020 Coverage: 54% Color Gamut Description: sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Frame Frequency: 60Hz
Reverse Scanning: No
Total Power Consumption: 18.35W (Typ.)
Signal Electrical: Voltage Supply: 5.0V (Typ.) Current Supply: 1.01/1.22A (Typ./Max.)
Signal Type: LVDS (2 ch, 8-bit) Logic Voltage: -
Interface Features: Position: Lower left of the screen body ┗ Type: Terminal
Interface Details: Brand Model Quantity Number of Pins Pin Pitch Pin Definition
Hecheng 187098-30091 1 pcs 30 pins 1.0 mm LVDS-30P2C8B-160A
Light Source Characteristics: Light Source Type: WLED Light Source Shape: 4 strings Position: Side-in type light source (left side)
Quantity: 4 strings Replaceable: - Lamp Life: 40K (Min.) hours
Lamp Electrical: Voltage Supply: 31.0/35.0V (Typ./Max.) Current Supply: 95.0/110.0mA (Typ./Max.)
Power Consumption: 11.78/13.3W (Typ./Max.)
Interface Features: Position: Lower right corner Type: Terminal
Interface Details: Brand Model Quantity Number of Pins Pin Pitch Pin Definition
Quankang Precision WM13-406-063N 1 pcs 6 pins 1.0 mm BLE-6PINS-CCAACC

Packaging Type Pieces/Package Number of Boxes Dimensions of Package (L×W×H) (mm) Gross Weight (Kgs) Volume (m³) Remarks
Carton 11 1 620×348×430 30.10 0.0928
Air Freight Pallet 198 18 N/A N/A N/A
Sea Freight Pallet 264 24 N/A N/A N/A
Sea Freight HQ Pallet 330 30 N/A N/A N/A
