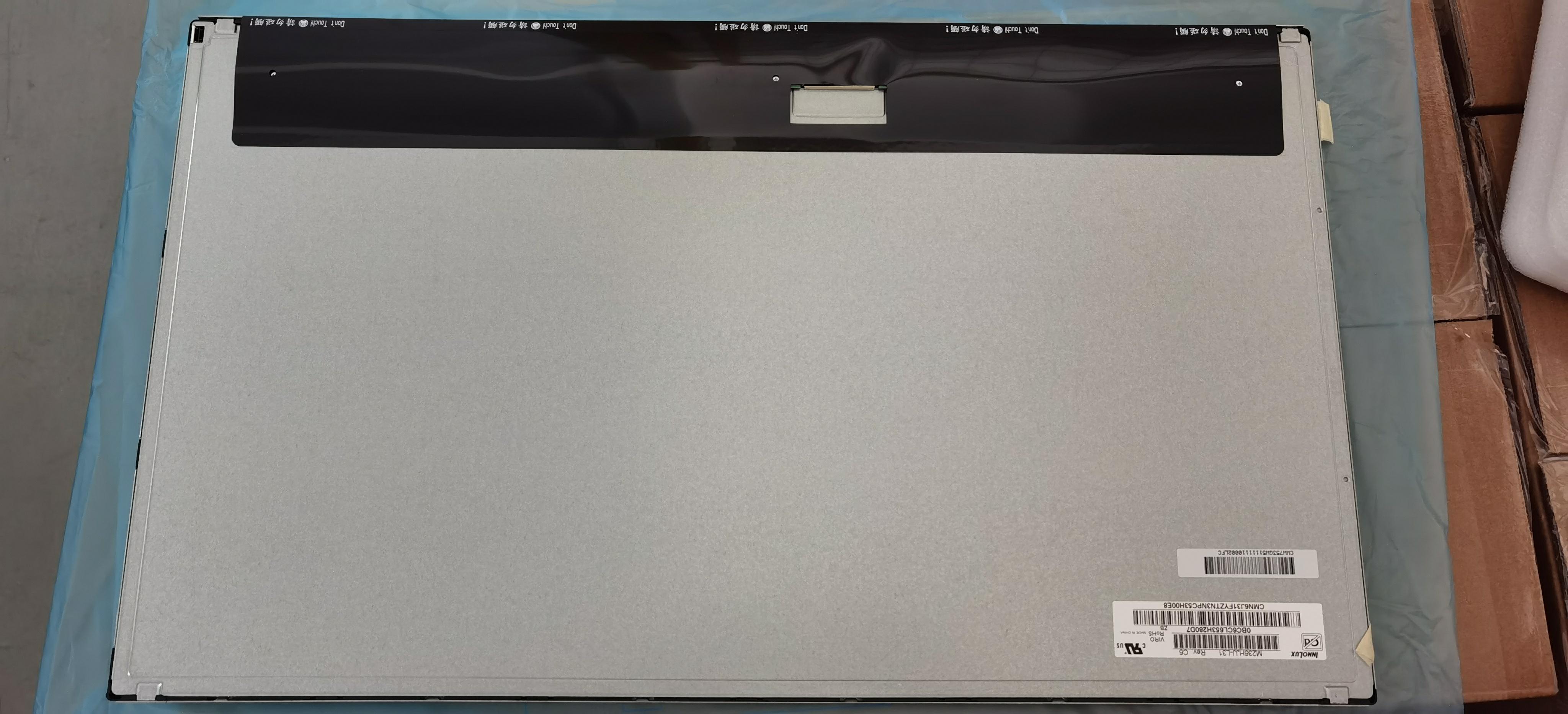

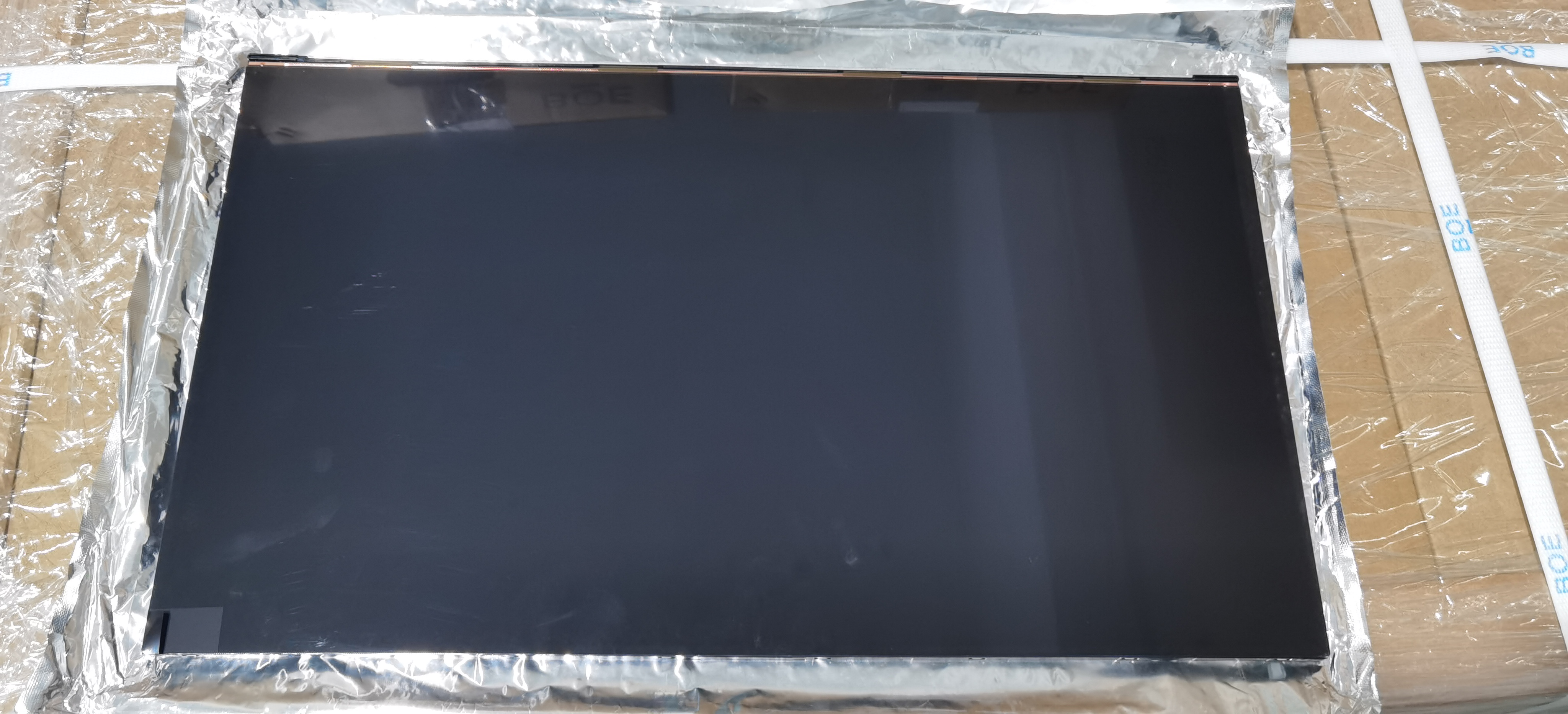

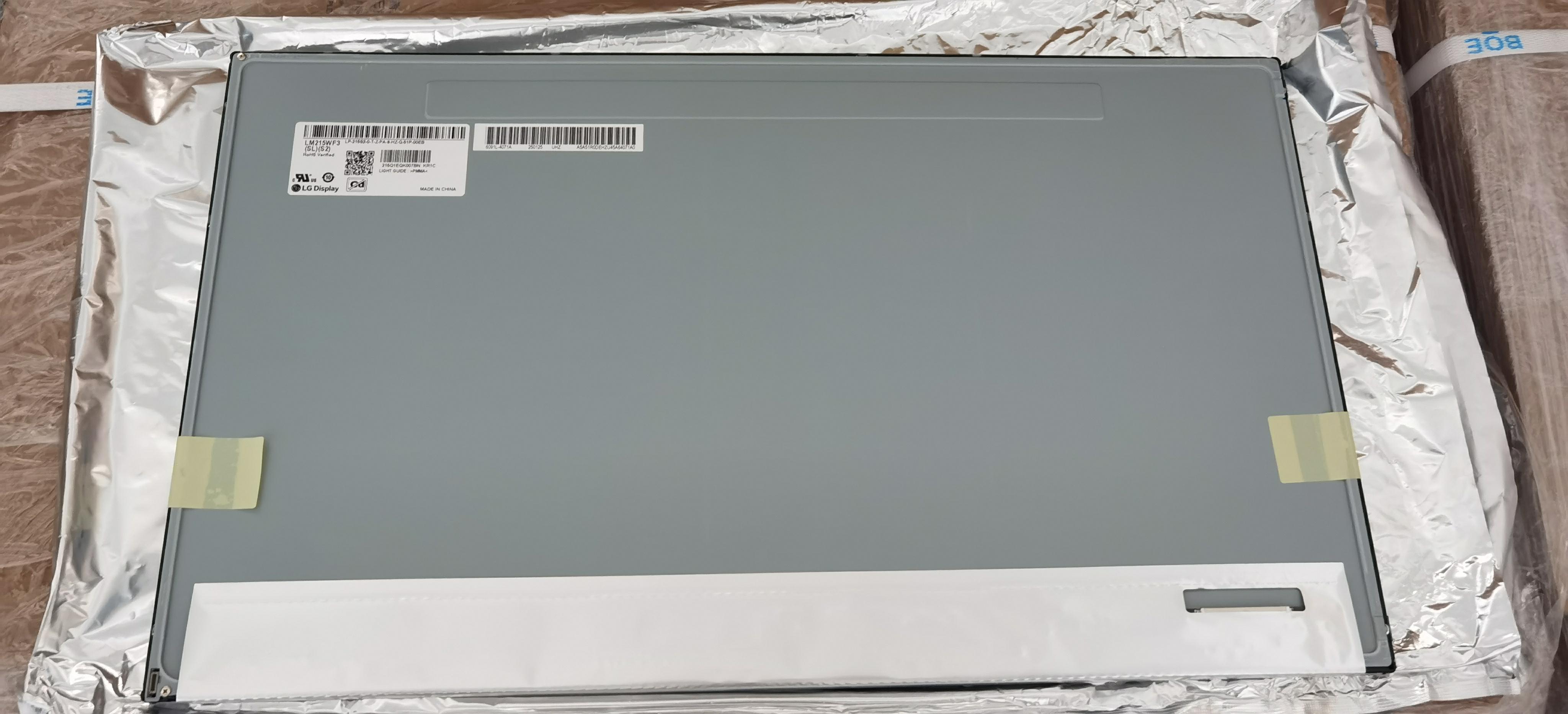

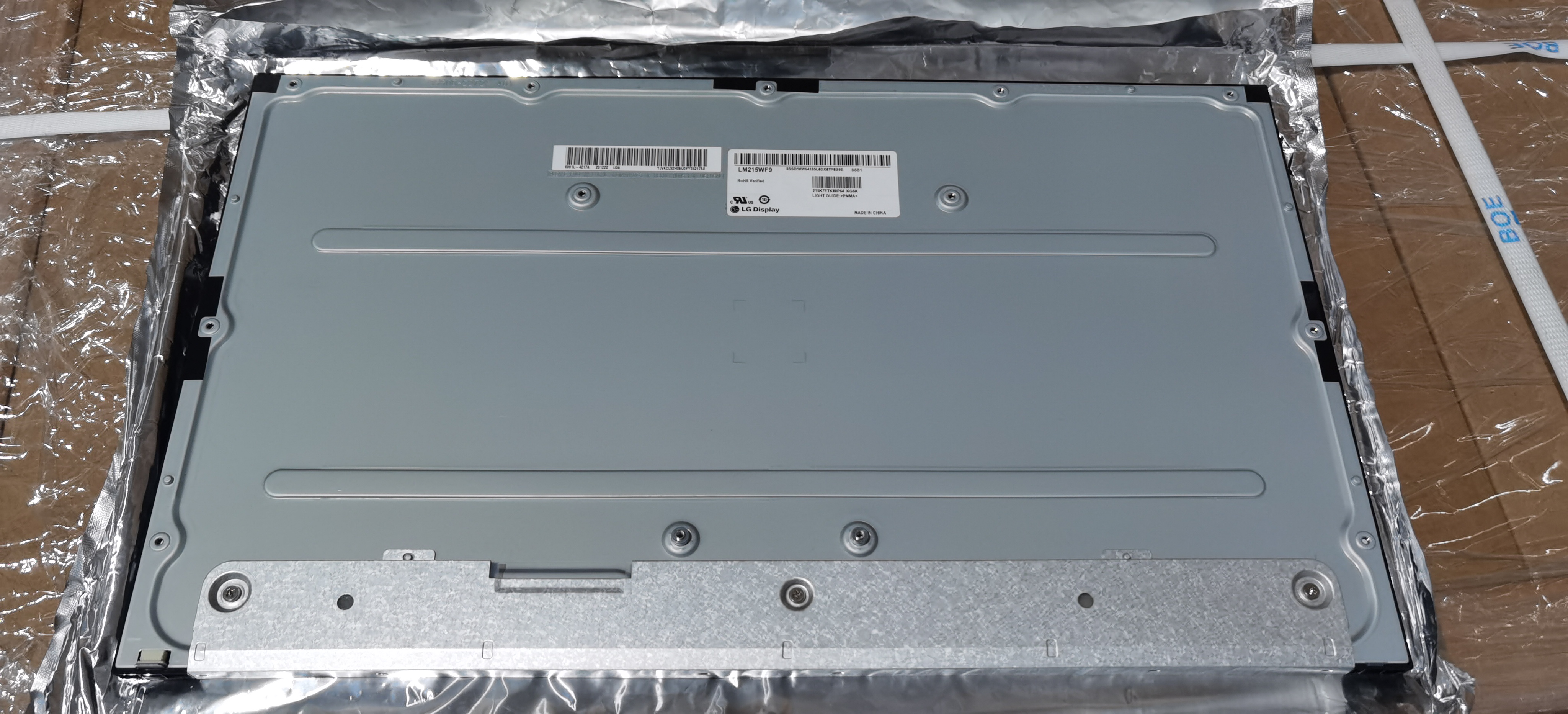

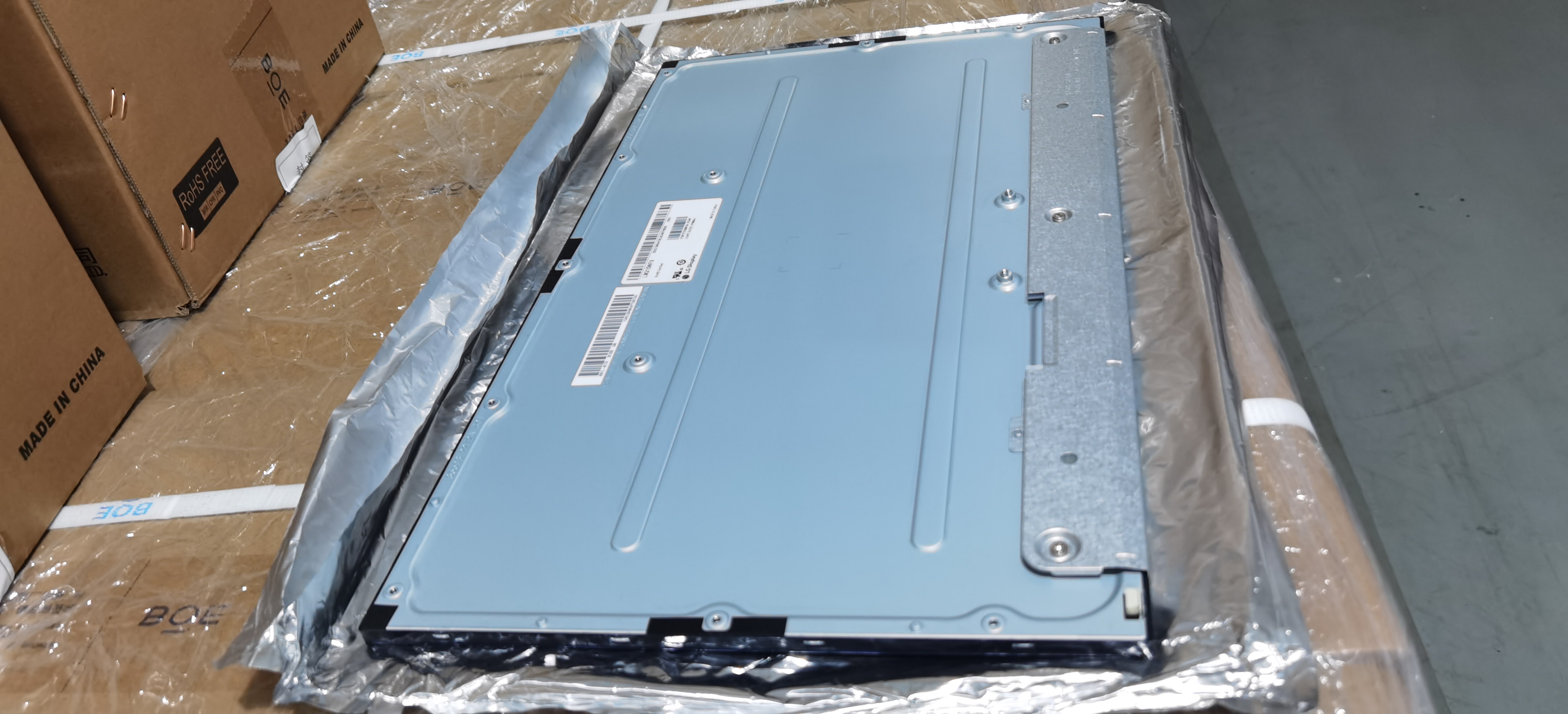

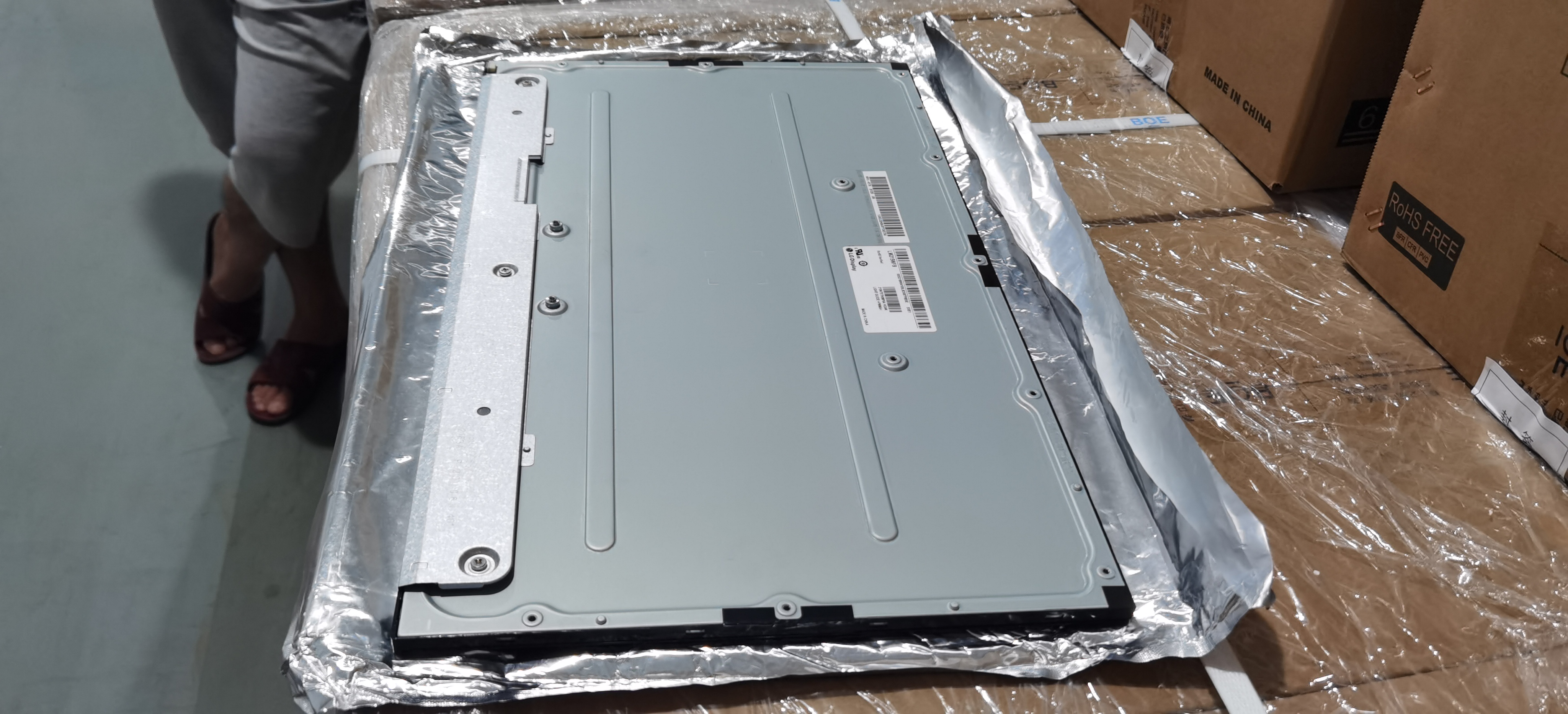

- LG 21.5寸液晶屏LM215WF9-SSB1 显示器 一体机 广告机 触显 查询机 凯显科技
-
- Brand：LG
- Size：21.5寸

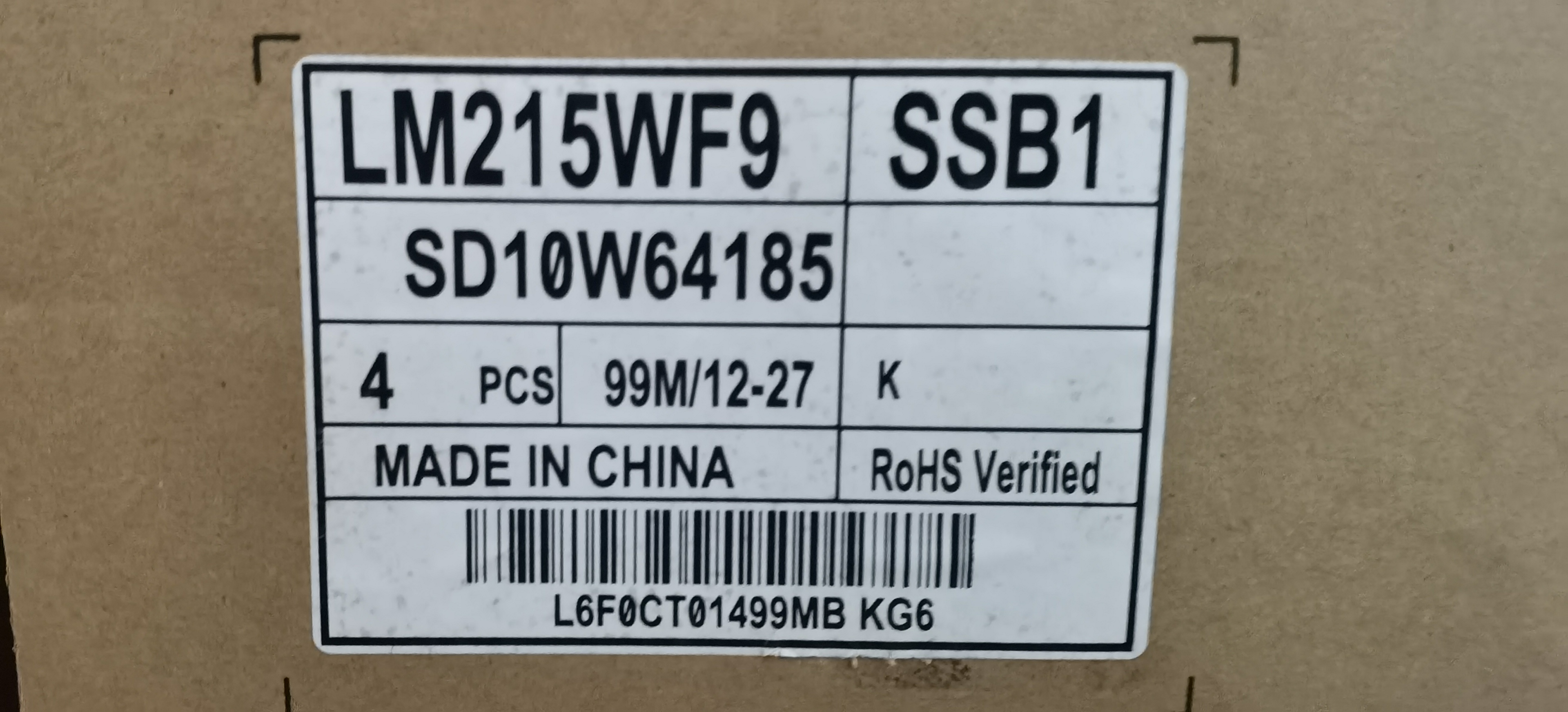

- Model：LM215WF9-SSB1
- Resolution：1920×1080
- Vision：89/89/89/89
- Contrast：1000:1
- brightness：250cd/m²
- interface：LVDS
- Operating temperature：0 ~ 50 °C 存储温度: -20 ~ 60 °C
- life：30K小时,不含驱动
- Types of：WLED
- LM215WF9-SSB1 is a 21.5-inch a-Si TFT-LCD module launched by LG Display. Its detailed parameters are as follows:
1. Basic Information: Equipped with WLED backlight, no backlight driver, no touch function. The surface is matte with Hard coating (3H). The operating temperature range is 0~50°C, and the storage temperature range is -20~60°C. The vibration resistance is 1.0G (9.8 m/s²). The net weight of the product is 1.61/1.69 Kgs (Typ./Max.). The mounting holes are Rear mounting holes (13 - M3).
2. Display Parameters: The display resolution is 1920(RGB)×1080 (FHD) with an aspect ratio of 16:9. Pixels are arranged in RGB vertical stripes. The display area size is 476.064×267.786 (width×height) mm, the visible size is 479.8×271.3 (width×height) mm, and the overall dimension is 484.5 (width)×284.4 (height) mm. The overall thickness is 8.55/12.7 (Typ./Max.) mm. The brightness is 250 cd/m², and the contrast ratio is 1000:1. The viewing angles are 89/89/89/89 (Typ.)(CR≥10) (left/right/top/bottom), with the best viewing angle being full viewing angle. The response time is 14 (Typ.)(Tr/Td) ms. A 6-bit + Hi-FRC grayscale signal can display 16.7 million colors, with a color gamut of 72% (NTSC) and a vertical refresh rate of 75Hz.
3. Backlight Parameters: It uses a bottom-edge side-in type light source with WLED illumination, has a service life of 30K hours, and does not include a backlight driver.
4. Interface Parameters: It adopts an LVDS (2 ch, 8-bit) signal interface with a total of 30 pins, uses terminal connection, and the driving voltage for the screen is 5.0V (Typ.).
LM215WF9-SSB1是LG Display推出的一款21.5英寸a - Si TFT - LCD液晶模组产品，其详细参数如下：
1. 基本信息：装配WLED背光，无背光驱动，无触摸，表面雾面，Hard coating (3H)，工作温度0~50°C，存储温度-20~60°C，耐振动性1.0G (9.8 m/s²)，产品净重1.61/1.69Kgs (Typ./Max.)，安装孔位Rear mounting holes (13 - M3)。
2. 显示参数：显示分辨率1920(RGB)×1080 (FHD)，宽高比16:9，像素采用RGB垂直条状排列，显示区域尺寸476.064×267.786 (宽×高) mm，可视尺寸479.8×271.3 (宽×高) mm，外观尺寸484.5(宽)×284.4(高) mm，外观厚度8.55/12.7 (Typ./Max.) mm，亮度250 cd/m²，对比度1000:1，可视角度89/89/89/89 (Typ.)(CR≥10) (左/右/上/下)，最佳视角为全视角，响应时间14 (Typ.)(Tr/Td) ms，6 - bit + Hi - FRC灰阶信号可显示16.7M颜色，色域72% (NTSC)，垂直刷新率75Hz。
3. 背光参数：采用WLED发光的侧入式光源(底部)，使用寿命30K小时，不含背光驱动。
4. 接口参数：采用LVDS (2 ch, 8 - bit)信号接口，总共30 pins，采用端子连接，驱屏电压5.0V (Typ.)。
1. 基本信息：装配WLED背光，无背光驱动，无触摸，表面雾面，Hard coating (3H)，工作温度0~50°C，存储温度-20~60°C，耐振动性1.0G (9.8 m/s²)，产品净重1.61/1.69Kgs (Typ./Max.)，安装孔位Rear mounting holes (13 - M3)。
2. 显示参数：显示分辨率1920(RGB)×1080 (FHD)，宽高比16:9，像素采用RGB垂直条状排列，显示区域尺寸476.064×267.786 (宽×高) mm，可视尺寸479.8×271.3 (宽×高) mm，外观尺寸484.5(宽)×284.4(高) mm，外观厚度8.55/12.7 (Typ./Max.) mm，亮度250 cd/m²，对比度1000:1，可视角度89/89/89/89 (Typ.)(CR≥10) (左/右/上/下)，最佳视角为全视角，响应时间14 (Typ.)(Tr/Td) ms，6 - bit + Hi - FRC灰阶信号可显示16.7M颜色，色域72% (NTSC)，垂直刷新率75Hz。
3. 背光参数：采用WLED发光的侧入式光源(底部)，使用寿命30K小时，不含背光驱动。
4. 接口参数：采用LVDS (2 ch, 8 - bit)信号接口，总共30 pins，采用端子连接，驱屏电压5.0V (Typ.)。
