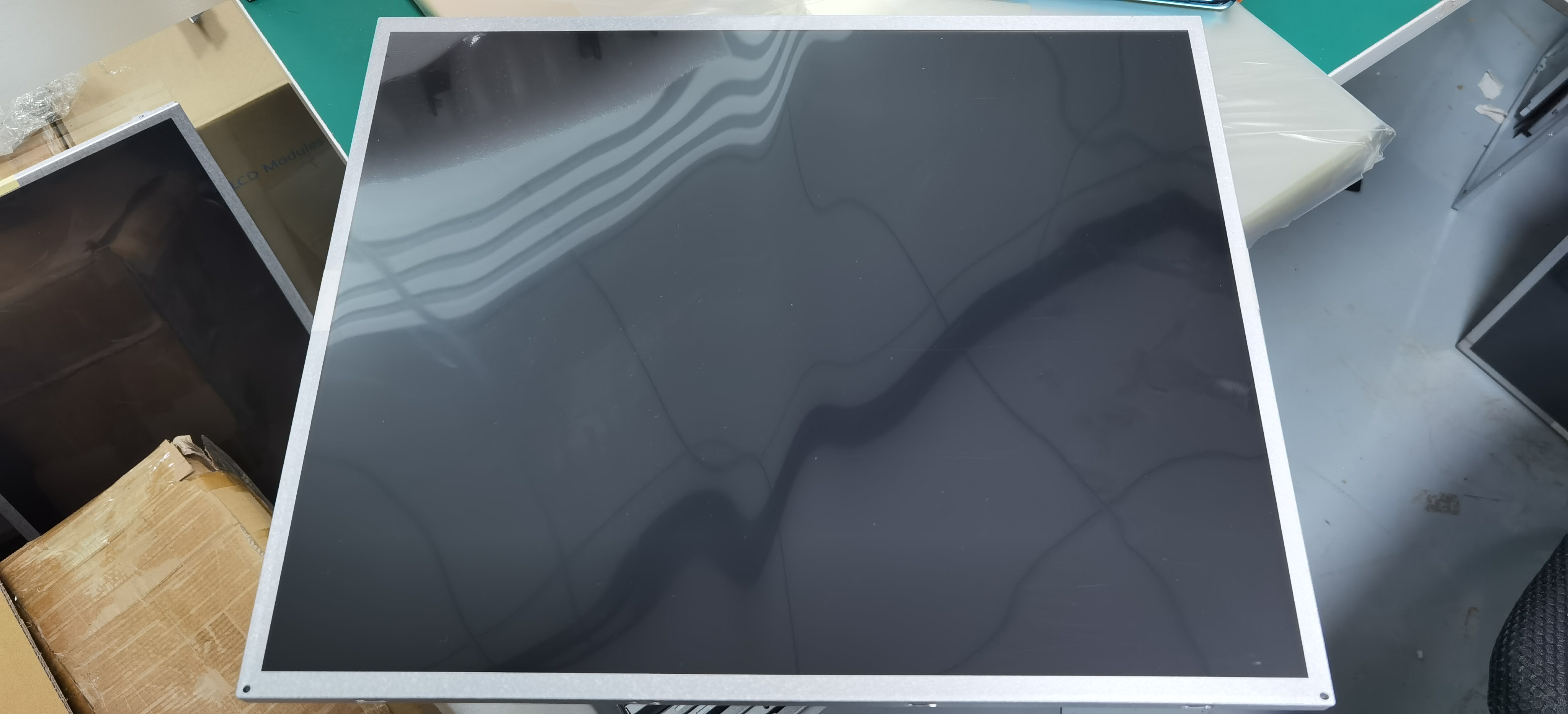

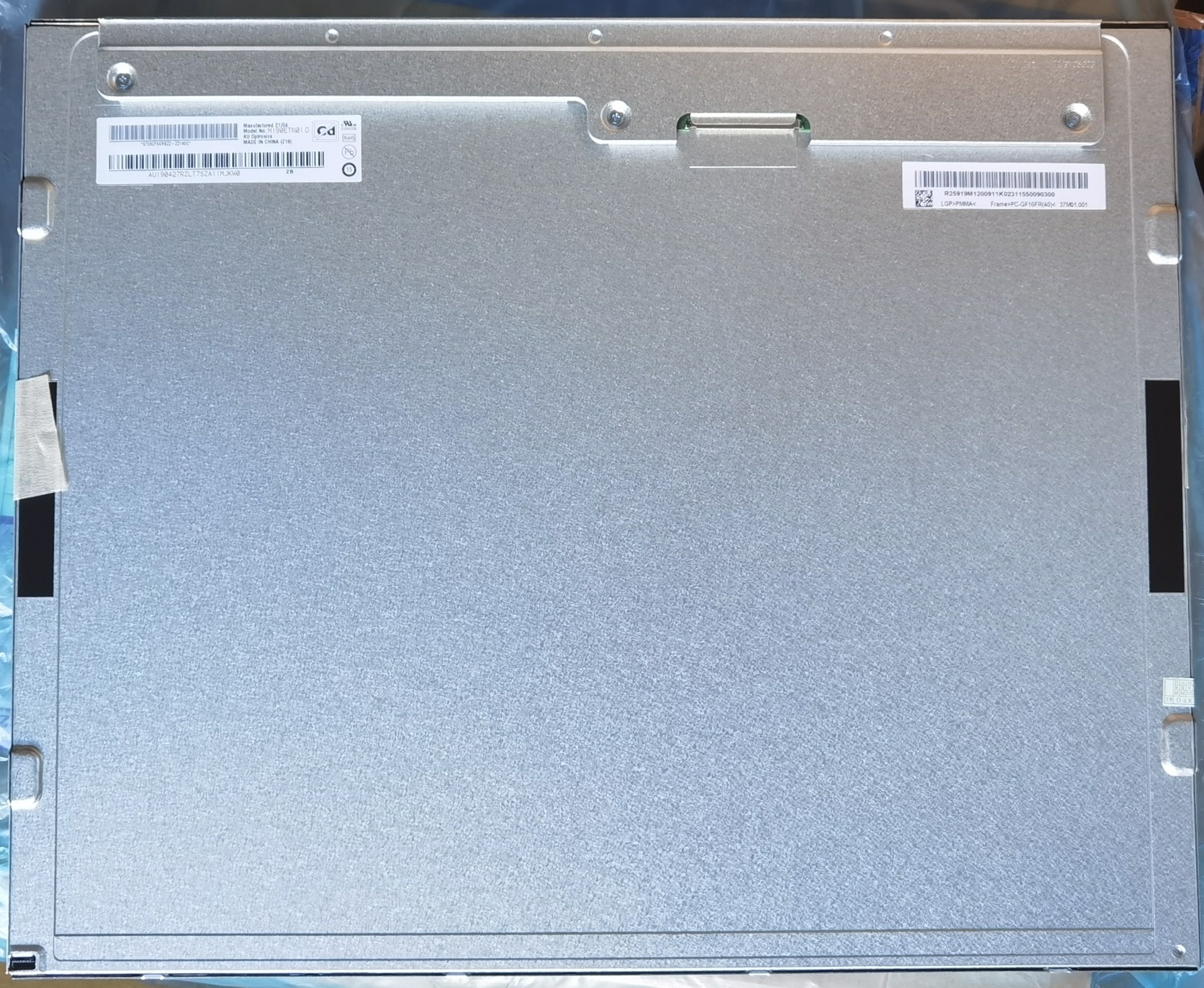

M190ETN01.0 is a 19.0-inch liquid crystal module product launched by AU Optronics Corporation (AUO). It adopts a-Si TFT-LCD technology, is equipped with a WLED backlight, has no backlight driver, and no touch function. As a TN, normally white display, transmissive liquid crystal module product, M190ETN01.0 can provide a display brightness of 250 cd/m², a transmissive contrast ratio of 1000:1, and a viewing angle of 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D). Its response time is 3.6/1.4 (Typ.)(Tr/Td) ms. Since each pixel uses a 6-bit + Hi-FRC grayscale signal, this product can display 16.7 million colors, and its color saturation also reaches 72% (NTSC). In terms of the backlight, this product uses a side-in type light source (bottom) with 11S4P WLED lighting. The service life of the light source is 30,000 hours, and it does not include a backlight driver. M190ETN01.0 adopts an LVDS (2 channels, 8-bit) signal interface, with a total of 30 pins, using terminal connection, and the panel driving voltage is 5.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz. If you plan to use the M190ETN01.0 liquid crystal module for new product development, Panelook® recommends that you consult AU Optronics (AUO) or its agents for the latest production status information and technical information about M190ETN01.0. The panel parameters displayed on Panelook® are all entered by Panelook's electronic engineers based on the specification sheets. Every effort has been made to reduce errors, but the complete accuracy of the parameters cannot be guaranteed. Please refer to the specification sheets! According to the information mastered by Panelook, this product entered mass production in Q4 of 2012, and the current production status is in mass production. Currently, there are 64 spot information and 53 supplier information of M190ETN01.0 on Panelook, and it is one of the main model products in the current Panelook market transactions. Panelook first established the parameters for this model on November 30, 2012, and the parameters were last updated on November 13, 2018. Its operating temperature ranges from 0 °C to 50 °C, and the storage temperature ranges from -20 °C to 60 °C. Based on its features such as white light LED backlight, front-mounted terminals, matte surface, and TCO 7.0 compliance, this model is recommended for use in products such as computer monitors.

M190ETN01.0 Basic Parameters
Manufacturer (Productor): AU Optronics/AUO
Product Model (MODEL): M190ETN01.0
Screen Size (Size): 19.0"
Resolution (Resolution): 1280×1024
Resolution Abbreviation (Resolution Name): SXGA
Display Ratio (Display scale): 5:4
Pixel Arrangement (Pixel Arrangement): RGB vertical stripes
Dot Pitch (Pixel Pitch): 0.098×0.294 mm
Product Composition (Panel Composition): Liquid crystal panel
Panel Type (Technology): a-Si TFT-LCD
Main Applications (Applications): [Computer Monitor]
Notable Features (Panel Features): [Wide color gamut], [White light LED], [Matte surface], [Wide viewing angle]

M190ETN01.0 Optoelectronic Parameters
Display Mode (Display mode): TN, normally white display, transmissive
Brightness (Luminance): 250 nits
Contrast Ratio (Contrast Ratio): 1000:1
Color (Color): 16.7 million
Color Saturation (Color Saturation): 72% NTSC (CIE1931)
Response Time (Response): 3.6/1.4 (Tr/Td) ms
Viewing Angle (Viewing Angle): 80/80/85/85 (up/down/left/right)
White Field Chromaticity (White Field Chroma): X: 0.313; Y: 0.329
White Field Variation (White Field Dynamic): 1.25 (9 points)
Scanning Frequency (Scanning Frequency): 60Hz
Reverse Scanning (Reverse Scan): No
Signal Type Category (The kind of Singnal): LVDS
Interface Type (Interface): LVDS
Signal Interface Definition (Singnal Interface Definition): BLE-6PINS-CCAACC
Panel Driving Voltage (Drive-screen voltage): 5.0V
Panel Input Current (Input Current): 0.53A
Signal Interface Type (Kind of Singnal Interface): Terminal
Signal Interface Brand (Brand of Singnal Interface): E&T
Signal Interface Model (Model of Singnal Interface): 187053-30091
Signal Interface Pin Pitch (Pitch of Singnal Interface): 1 mm
Number of Signal Interface Pins (Pin of Singnal Interface): 6 pins

M190ETN01.0 Structural Parameters
Operating Temperature (Operation Temperature): 0 °C ~ 50 °C
Storage Temperature (Storage Temperature): -20°C ~ 60°C
Surface Treatment (Surface Technology): Matte surface, Hard coating (3H)
Display Area (Active Area): 376.32×301.06 mm
Visible Area (Display Area): 380.0×305.08
External Dimensions (Outline): 396.00× 324.00×11.40 mm
Touch Screen (Touch Panel): None
Lamp Position (Lamp Position): Side-in type light source (bottom)
Backlight Type (Backlight): WLED
Number of Lamps (Lamp Number): 11S4P pcs
Lamp Shape (Lamp Shape): 4 strings
Backlight Life (Life Time of Lamp): 30,000 Hours
Voltage of a Single Lamp (Voltage of Lamp): 35.2V
Current of a Single Lamp (Current of Lamp): 60mA
Built-in Lamp Driver (Driver of Backlight): None
Backlight Interface Type (Kind of Backlight Interface): Terminal
Backlight Interface Brand (Brand of Backlight Interface): E&T
Backlight Interface Model (Model of Backlight Interface): 3707K-S06N-21R
Number of Backlight Interfaces (Quantity of Backlight Interface): 1 pcs
Backlight Interface Pin Pitch (Pitch of Backlight Interface): 1.0 mm
Backlight Interface Definition (Backlight Interface Define ): BLE-6PINS-CCAACC

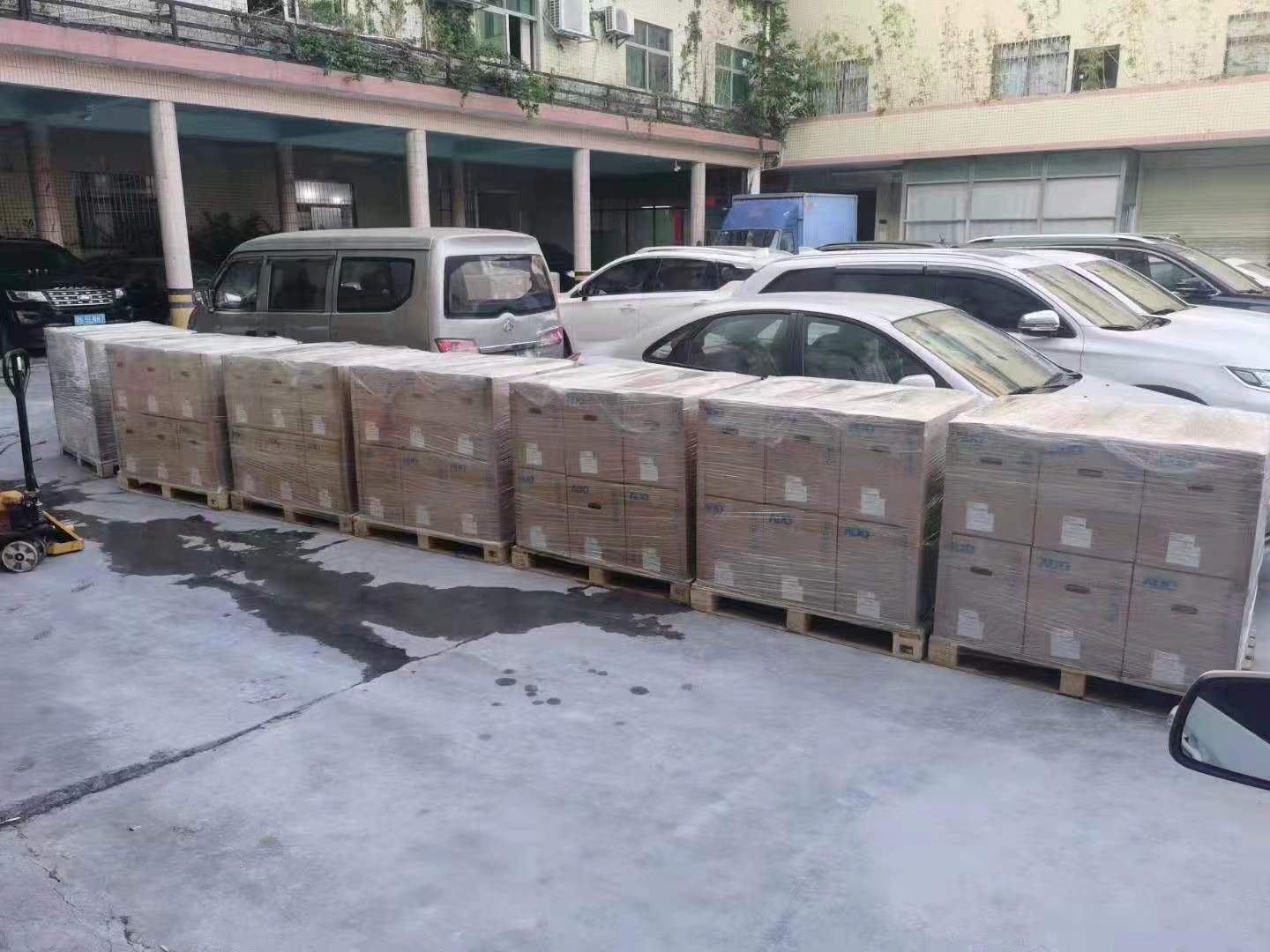

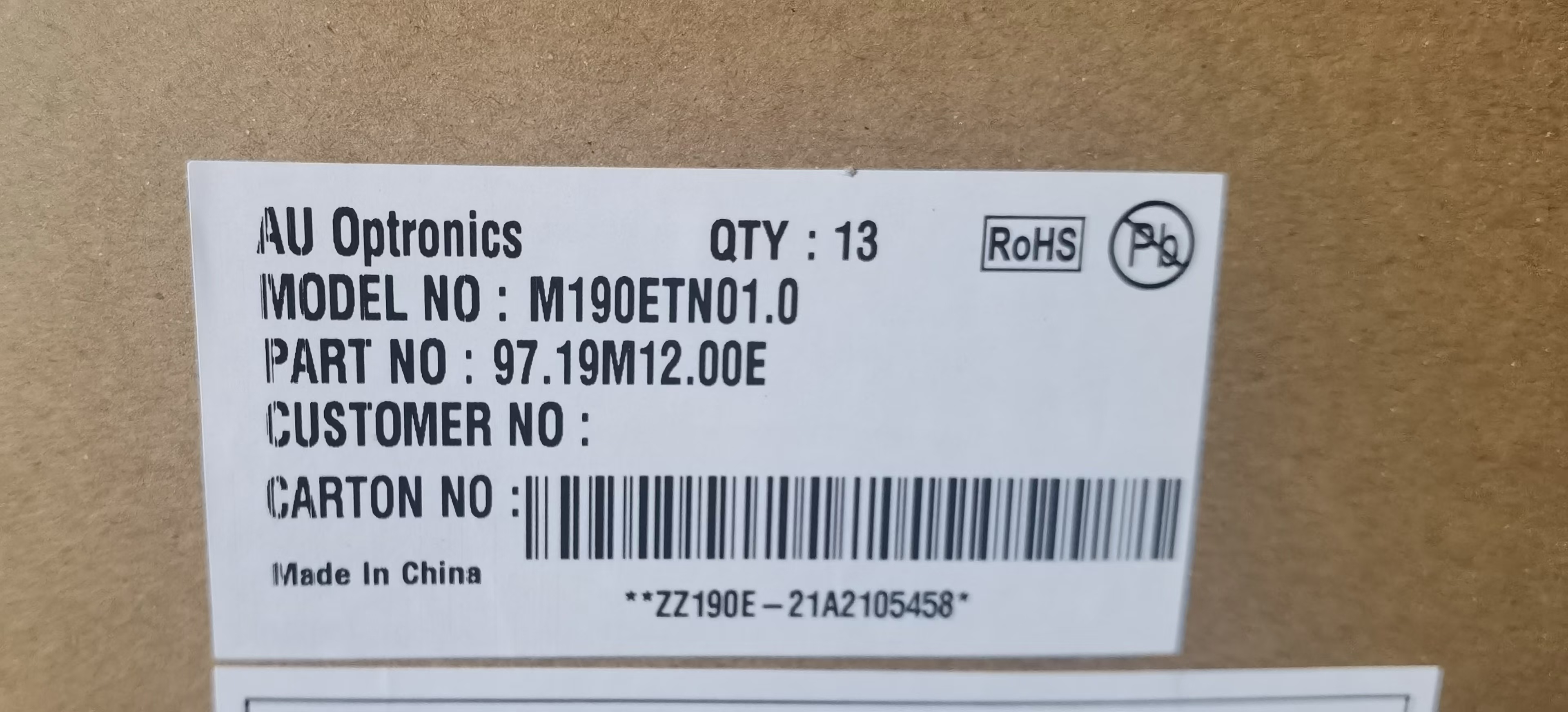

M190ETN01.0 Packaging and Production Status
Quantity per Box (Quantity Per Box): 13 pcs
Size of the Packaging Box (Size of the Box): 409×367×475 mm (Length×Width×Height)
Gross Weight of the Packaging Box (G.W. of the Box): 26.83 Kg
