• Brand：友达AUO
• Size：42寸

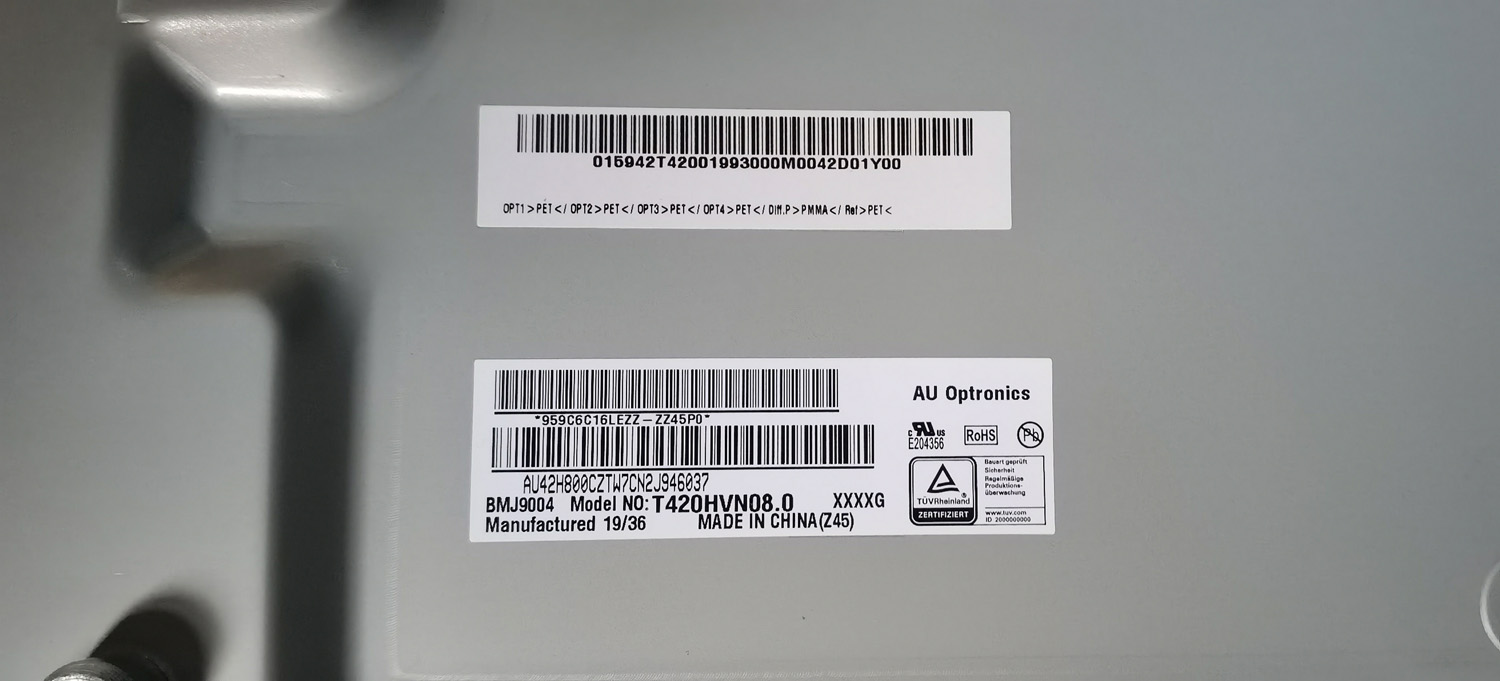

• Model：T420HVN08.0
• Resolution：1920×1080
• Vision：89/89/89/89
• Contrast：3000:1
• brightness：400 cd/m²
• interface：51 pins
• Operating temperature：0 ~ 50 °C ; 存储: -20 ~ 60 °C
• life：30K小时 , 含LED驱动器
• Types of：WLED

T420HVN08.0 is a 42-inch a-Si TFT-LCD liquid crystal module product launched by AU Optronics (AUO). It is equipped with a WLED backlight, includes a backlight driver with an LED driver, and has no touch function. The operating temperature of this product is 0 ~ 50°C, and the storage temperature is -20 ~ 60°C. Panelook summarizes its typical features as: landscape mode/portrait mode, white light LED backlight, including an LED driver, flip-chip terminals, matte surface, and 16 hours/day operation. Based on its features, Panelook recommends that this model be applied to televisions and digital signage. According to the information mastered by Panelook, this product entered mass production in Q2 of 2015, and the current production status is discontinued. Currently, there are 7 spot information and 6 supplier information of this model on Panelook, and the trading atmosphere is very active. Panelook first established the parameters for this model on March 05, 2015, and the parameters were last updated on November 09, 2018. As an AMVA3, normally black display, transmissive liquid crystal module product, T420HVN08.0 can provide a display brightness of 400 cd/m², a transmissive contrast ratio of 3000:1, and a viewing angle of 89/89/89/89 (Typ.)(CR≥10) (left/right/up/down). The best viewing angle is a full viewing angle, and its response time is 6.5 (Typ.)(G to G) ms. Since each pixel uses an 8-bit grayscale signal, this product can display 16.7 million colors, and its color saturation also reaches 72% (NTSC). In terms of the backlight, this product uses a side-in type light source with WLED lighting, and the service life of the light source is 30,000 hours, including an LED driver. T420HVN08.0 adopts an LVDS (2 ch, 8-bit) signal interface, with a total of 51 pins, using terminal connection, and the panel driving voltage is 12.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz. The production status marked on Panelook is for reference only and should not be used as the basis for users' decisions. The panel parameters displayed on Panelook® are all entered by Panelook's electronic engineers based on the specification sheets. Every effort has been made to reduce errors, but the complete accuracy of the parameters cannot be guaranteed. Please refer to the specification sheets! If you plan to use this liquid crystal module for developing new products, Panelook® recommends that you consult AU Optronics (AUO) for the latest production status information and technical information about T420HVN08.0.
Application Details of AUO Liquid Crystal Module T420HVN08.0
Basic Information: Brand: AUO Model Name: T420HVN08.0
Screen Type: a-Si TFT-LCD, Liquid Crystal Module Other Names: -
Screen Size: 42 inches Suitable for: Television, Digital Signage
Maximum Ratings: Operating Temperature: 0 ~ 50 °C Storage Temperature: -20 ~ 60 °C
Vibration Resistance: - RoHS: RoHS Compliance
Typical Features: Landscape mode/portrait mode, white light LED backlight, including LED driver, flip-chip terminals, matte surface
Remarks: 16 hours/day operation
Optical Details of AUO Liquid Crystal Module T420HVN08.0
Basic Information: Luminance (cd/m²): 400 (Typ.) Contrast Ratio: 3000 : 1 (Typ.) (Transmissive)
Best Viewing Angle: Full viewing angle Response Speed: 6.5 (Typ.)(G to G) (ms)
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Optical Mode: AMVA3, Normally black display, transmissive
Color Performance: Chromaticity: Wx: 0.280; Wy: 0.290 Number of Colors: 16.7M (8-bit)
Color Temperature: 9969K White Field Variation: 1.33 (Max.)(9 points) White field variation = maximum value / minimum value
1931 Color Gamut: NTSC Ratio: 70% sRGB Coverage: 96%
Adobe RGB Coverage: 73% DCI-P3 Coverage: 73%
Rec.2020 Coverage: 53% Color Gamut Description: sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Structural Details of AUO Liquid Crystal Module T420HVN08.0
Pixel Characteristics: Resolution: 1920(RGB)×1080, FHD Pixel Configuration: RGB vertical stripes 【Copyright of Panelook. Plagiarism is strictly prohibited】
LCR Vertical Stripe: Left-center-right vertical stripes
Rectangle: Square
RGB Delta: Red-green-blue triangle
RGB Horizontal Stripe: Red-green-blue horizontal stripes
RGB Vertical Stripe: Red-green-blue vertical stripes
RGBW Rectangle: Red-green-blue-white square
RG/BW PenTile: (Red-green)(Blue-white) vertical stripes
RG/BG PenTile: (Red-green)(Blue-green) vertical stripes
RGBY Vertical Stripe: Red-green-blue-yellow vertical stripes
Dot Pitch (W×H): 0.1615×0.4845 mm Pixel Pitch (W×H): 0.4845×0.4845 mm [52PPI]
Structural Dimensions: Display Size: 930.24(W)×523.26(H) mm Appearance Size: 952.2(W)×547(H) mm
Visible Size: 937.2(W)×530.2(H) mm Appearance Thickness: 17.1/27.9 (Typ./Max.) mm
Appearance Features: Physical Shape: Planar rectangle Landscape/Portrait: Landscape/portrait mode
Aspect Ratio (W:H): 16:9 Appearance Shape: -
Other Details: Weight: 8.60Kgs Surface Treatment: Matte surface (Haze 2%), Hard coating (3H)
Electronic Details of AUO Liquid Crystal Module T420HVN08.0
Refresh Rate: 60Hz 【Copyright of Panelook. Plagiarism is strictly prohibited】
120Hz (60HZ input): Built-in MEMC circuit
120Hz+120Hz: 120Hz panel + 120Hz backlight
240Hz (60HZ input): Built-in MEMC circuit
Reverse Scanning: No
Signal Details of AUO Liquid Crystal Module T420HVN08.0
Signal Electrical: Input Current: 0.31/0.6A (Typ./Max.) Input Voltage: 12.0V (Typ.)
Power Consumption: 3.72/7.2W (Typ./Max.) Signal Interface: LVDS (2 ch, 8-bit)
Interface Features: Position: Middle of the lower part of the screen Type: Terminal
Signal Interface: Brand Model Quantity Pin Pitch Number of Pins Pin Definition Panelook Internal Code
Aviation Electronics FI-RE51S-HF 1 pcs 0.5 mm 51 pins
Lumination Details of AUO Liquid Crystal Module T420HVN08.0
Lamp Characteristics: Lamp Type: WLED Backlight Replaceability: - Position: Side-in type light source
Quantity 【Copyright of Panelook. Plagiarism is strictly prohibited】
Quantity of CCFL, EEFL, HCFL, FFL: x pcs
Quantity of WLED, RGB LED: x strings, xSxP
Example: 3S8P×2CN
3S: 3 LEDs in series
8P: 8 parallel strings
2CN: 2 terminals - Lamp Shape: - Life: 30K (Min.) hours
Interface Features: Position: - Type: Terminal
Interface Details: Brand Model Quantity Pin Pitch Number of Pins Pin Definition 【Copyright of Panelook. Plagiarism is strictly prohibited】
H: High voltage
N: Empty pin
L: Low voltage
A: Anode
C: Cathode
HAN CHERN CI0114M1HR0-NH 1 pcs 2.0 mm 14 pins
Backlight Drive: Including LED driver
Drive Electrical: Input Current: 2.49/2.65A (Typ./Max.) Input Voltage: 24.0±1.2V
Power Consumption: 59.9/63.7W (Typ./Max.)
Packaging Details of AUO Liquid Crystal Module T420HVN08.0
Packaging Box: Quantity Size (L×W×H) Weight
22 pcs / box 1130×1055×655 mm 211 Kgs
Return to Top
Parameter Source of AUO Liquid Crystal Module T420HVN08.0
Parameter Source: Document Number Version Number Language Original Factory Release Date
Ver0.0 English Version February 3, 2015
Panelook Last Update: November 9, 2018, 17:06
