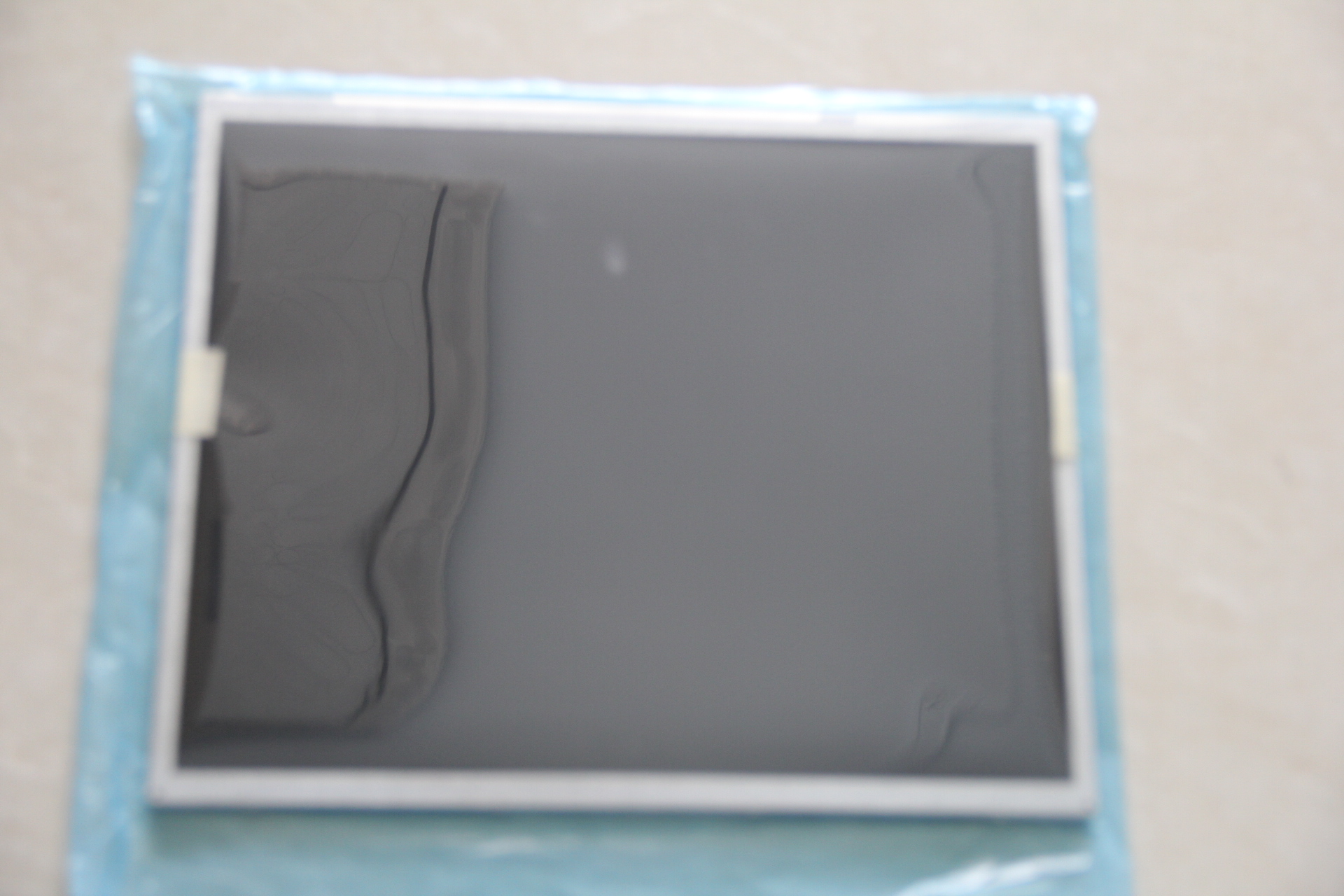

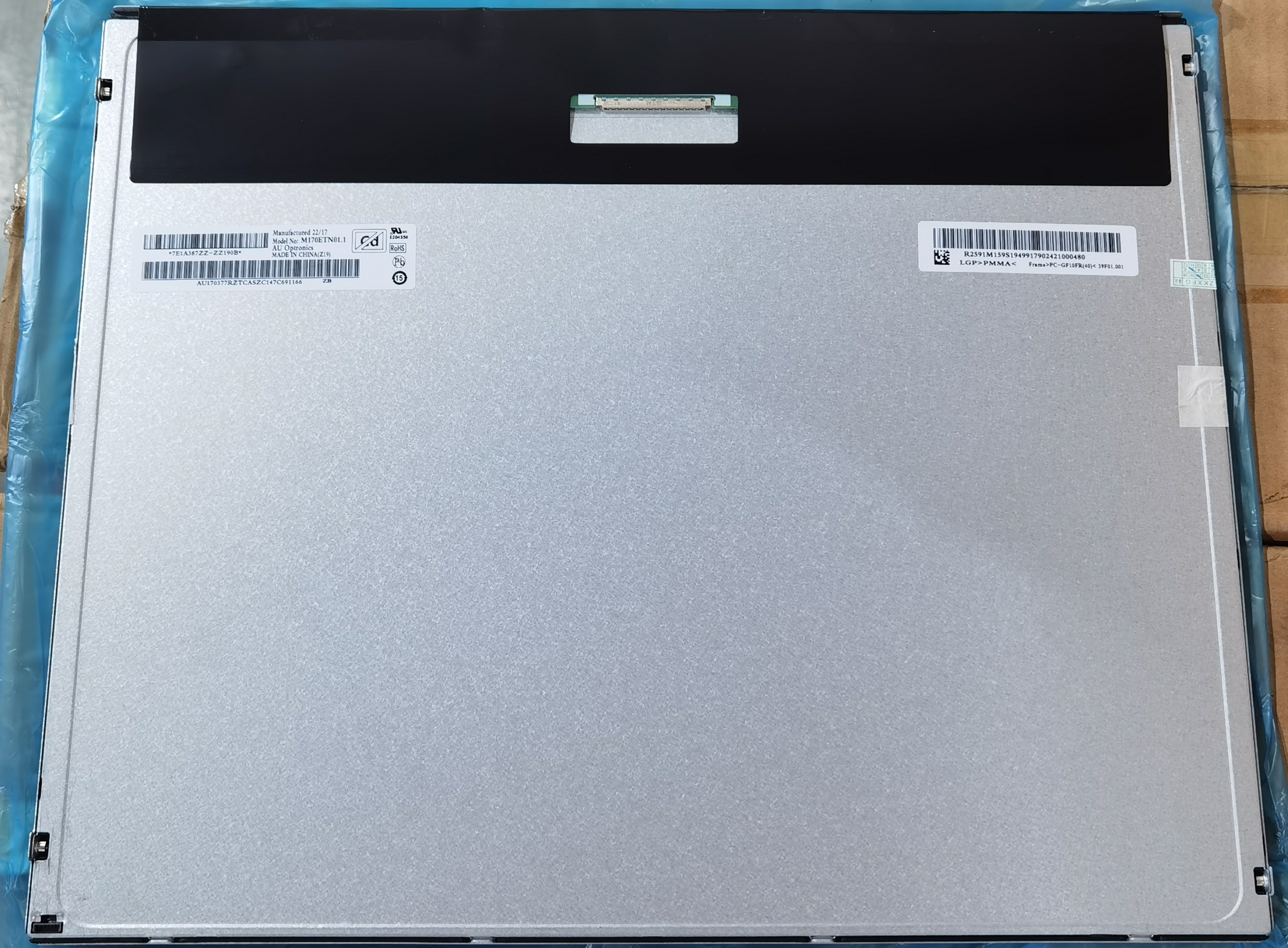

- 友达17寸LED液晶屏M170ETN01.1规格书工业屏一体机触显广告机
-
- Brand：友达AUO
- Size：17寸方屏
- Model：M170ETN01.1
- Resolution：1280×1024
- Vision：85/85/80/80
- Contrast：1000:1
- brightness：250 cd/m²
- interface：30 pins
- Operating temperature：0 ~ 50 °C ; 存储温度: -20 ~ 60 °C
- life：30K小时 , 无驱动
- Types of：WLED
null6A signal interface type (Kind of Singnal Interface) terminal signal interface brand (Brand of Singnal Interface) E&T signal interface model (Model of Singnal Interface) AL230F-A0G1D-P signal interface pitch of Singnal Interface 1 mm signal interface pin number (Pin of Singnal Interface) 6 pins M170ETN01.1 structural parameters operating temperature (Operation Temperature) 0 ° C~50 ° C storage temperature (Storage Temperature) -20 ° C~60 ° C surface treatment (Surface Technology) matte surface, Hard coating (3H) display area (Active Area) 337.92 × 270.336 mm visible area (Display Area) 341.72 × 274.14 outline dimensions (Outline) 358.50 × 296.50 × 7.70 mm touch screen (Touch Panel) no lamp position (Lamp Position) side in light source (bottom) backlight type (Backlight) WLED lamp quantity (Lamp Number) 9S4P pcs lamp shape (Lamp Shape) 4 strings backlight life (Life Time of Lamp) 30K Hours single lamp voltage (Voltage of Lamp) 28.8V single lamp current (Current of Lamp) 60mA built-in lamp driver (Driver of Backlight) no backlight Kind of Backlight Interface Terminal Backlight Interface Brand of Backlight Interface E&T Backlight Interface Model of Backlight Interface 3707K-S06N-21R Quantity of Backlight Interface 1 pcs Pitch of Backlight Interface 1.0 mm Backlight Interface Definition BLE-6PINS-CCAACC M170ETN011 Packaging and Production Status Quantity Per Box 8 pcs Packaging Box Size of the Box 434 × 278 × 390 mm (length × width × height) Gross Weight of the Box (G.W. of the Box) 13.45 Kg,
G150XVN01.0原装
LQ150X1LG92原装
M170ETN01.1原装+组装
P170ETN01.0原装
M190ETN01.0原装+组装
G190ETN01.0原装+组装
G190ETN01.1原装
G156HTN02.1原装
M185XTN01.2组装
M190PW01 V8 组装
P215HVN01.0原装
T215HVN01.1玻璃+组装
HR215WU1-120原装
P270HⅤN02.0原装+组装
P320HVN02.0原装
LC320EUJ-FFE2组装
T320HVN05.6组装
HV320FHB-F40玻璃+模组
T420HVN08.0原装
LC430EGG-FKM1原装。
M170ETN01.1 基本参数 |
|
|---|---|
| 制造商(Productor) | 友达/AUO |
| 产品型号(MODEL) | M170ETN01.1 |
| 屏尺寸(Size) | 17.0" |
| 分辨率(Resolution) | 1280×1024 |
| 分辨率简称(Resolution Name) | SXGA |
| 显示比例(Display scale) | 5:4 |
| 像素排列(Pixel Arrangement) | RGB垂直条状 |
| 点距(Pixel Pitch) | 0.088×0.264 mm |
| 产品组成(Panel Composition) | 液晶屏, |
| 面板类型(Technology) | a-Si TFT-LCD |
| 主要用途(Applications) | 【电脑显示器】, |
| 显著特征(Panel Features) | 【广色域】, 【白光LED】, 【雾面】, 【广视角】, |
M170ETN01.1光电参数 |
|
| 显示模式(Display mode) | TN，常白显示，透射式 |
| 亮度(Luminance) | 250 nits |
| 对比度(Contrast Ratio) | 1000:1 |
| 颜色(Color) | 16.7M |
| 色彩饱和度(Color Saturation) | 72%NTSC(CIE1931) |
| 响应时间(Response) | 3.8/1.2 (Tr/Td) ms |
| 可视角度(Viewing Angle) | 80/80/85/85(上/下/左/右) |
| 最佳视角(The Best View) | 6 o'clock |
| 白场色度(White Field Chroma) | X:0.313; Y:0.329 |
| 白场变动(White Field Dynamic) | 1.25 (9 points) |
| 扫描频率(Scanning Frequency) | 60Hz |
| 反转扫描(Reverse Scan) | No |
| 信号类型大类(The kind of Singnal) | LVDS |
| 接口类型(Interface) | LVDS |
| 信号接口定义(Singnal Interface Definition) | BLE-6PINS-CCAACC |
| 驱屏电压(Drive-screen voltage) | 5.0V |
| 面板输入电流(Input Current) | 0.6A |
| 信号接口类型(Kind of Singnal Interface) | 端子 |
| 信号接口品牌(Brand of Singnal Interface) | E&T |
| 信号接口型号(Model of Singnal Interface) | AL230F-A0G1D-P |
| 信号接口脚距(Pitch of Singnal Interface) | 1 mm |
| 信号接口脚数(Pin of Singnal Interface) | 6 pins |
M170ETN01.1结构参数 |
|
| 工作温度(Operation Temperature) | 0 °C ~ 50 °C |
| 存储温度(Storage Temperature) | -20°C ~ 60°C |
| 表面处理(Surface Technology) | 雾面，Hard coating (3H) |
| 显示区域(Active Area) | 337.92×270.336 mm |
| 可视区域(Display Area) | 341.72×274.14 |
| 外形尺寸(Outline) | 358.50× 296.50×7.70 mm |
| 触摸屏(Touch Panel) | 无 |
| 灯管位置(Lamp Position) | 侧入式光源(底部) |
| 背光类型(Backlight) | WLED |
| 灯管数量(Lamp Number) | 9S4P pcs |
| 灯管形状(Lamp Shape) | 4串 |
| 背光寿命(Life Time of Lamp) | 30K Hours |
| 单一灯管电压(Voltage of Lamp) | 28.8V |
| 单一灯管电流(Current of Lamp) | 60mA |
| 内置灯管驱动器(Driver of Backlight) | 无 |
| 背光接口类型(Kind of Backlight Interface) | 端子 |
| 背光接口品牌(Brand of Backlight Interface) | E&T |
| 背光接口型号(Model of Backlight Interface) | 3707K-S06N-21R |
| 背光接口数量(Quantity of Backlight Interface) | 1 pcs |
| 背光接口脚距(Pitch of Backlight Interface) | 1.0 mm mm |
| 背光接口定义(Backlight Interface Define ) | BLE-6PINS-CCAACC |
M170ETN01.1包装及生产状态 |
|
| 每箱数量(Quantity Per Box) | 8 pcs |
| 包装箱尺寸(Size of the Box) | 434×278×390 mm (长×宽×高) |
| 包装箱毛重(G.W. of the Box) | 13.45 Kg， |
