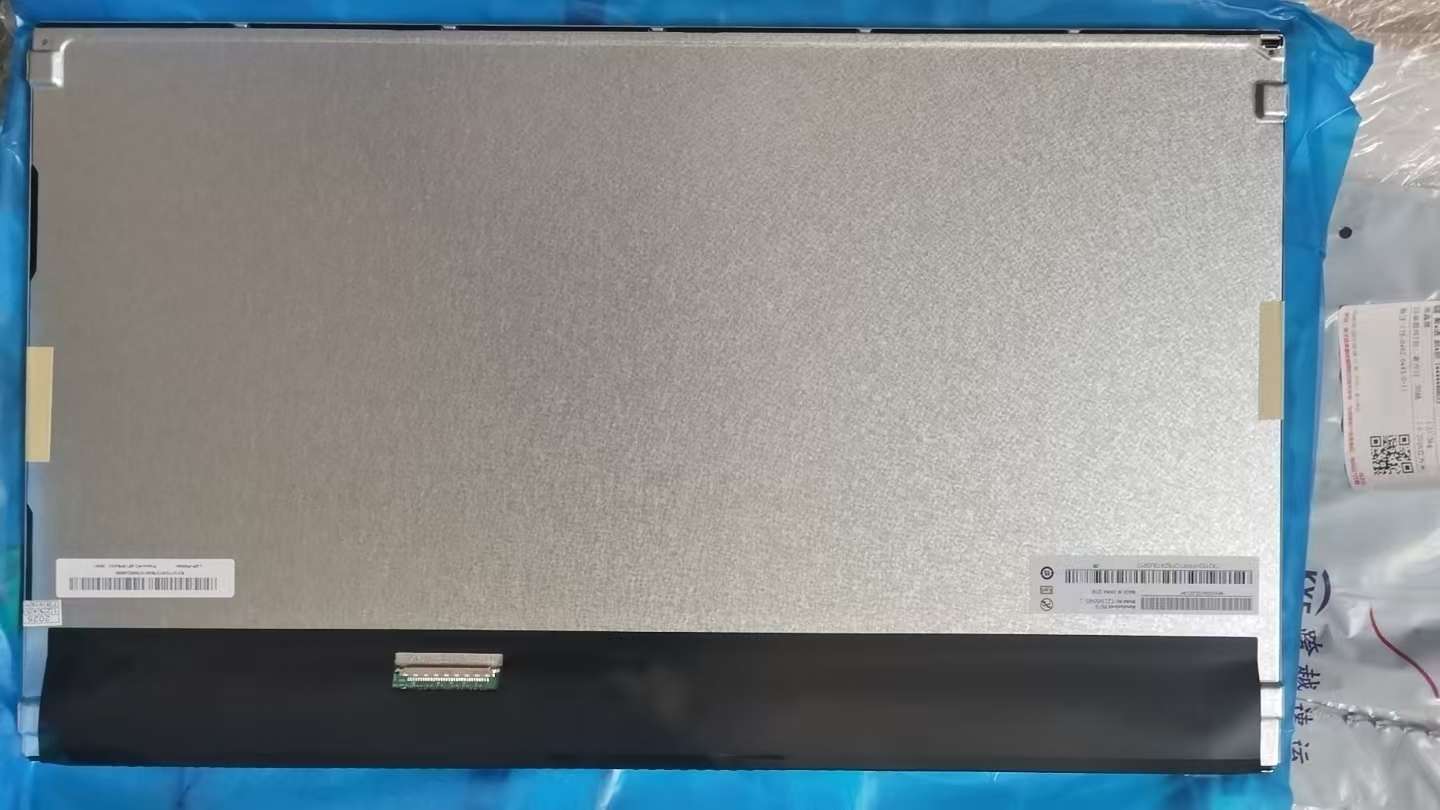

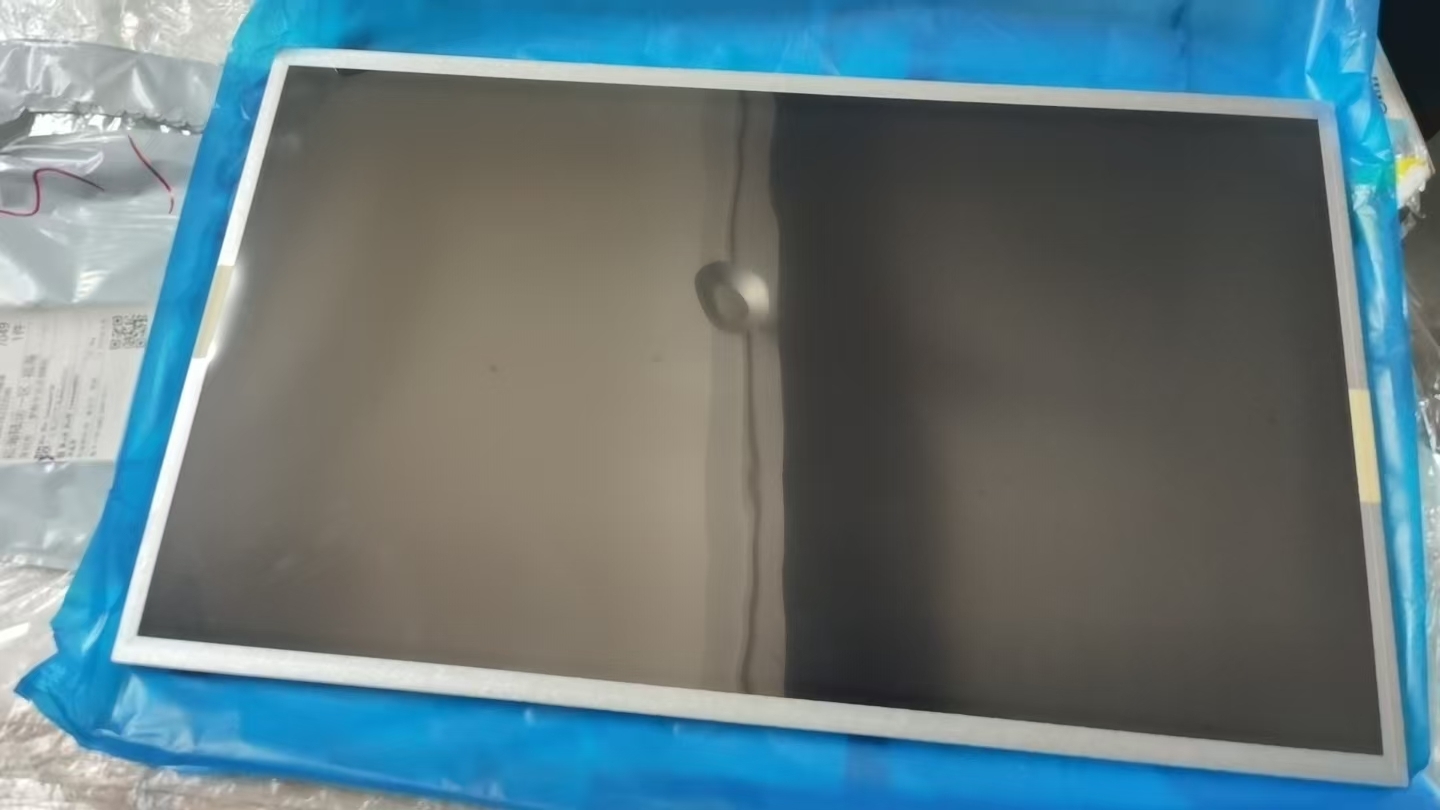

- 友达21.5寸液晶屏T215HVN05.1 显示器 一体机 广告机 触显 查询机
-
- Brand：友达AUO
- Size：21.5寸

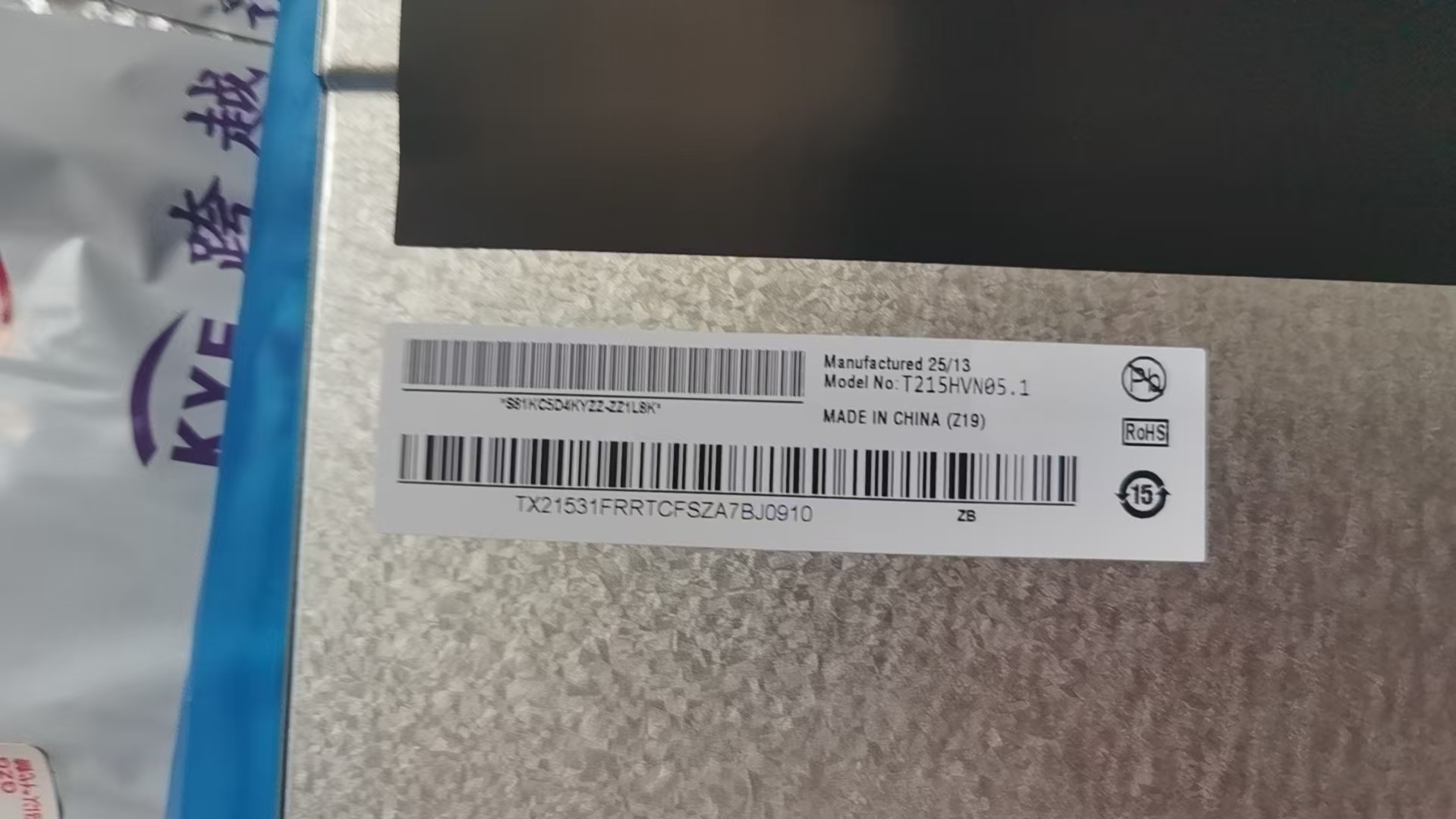

- Model：T215HVN05.1
- Resolution：1920×1080
- Vision：89/89/89/89
- Contrast：3000:1
- brightness：250/350/500/1000
- interface：LVDS
- Operating temperature：0 ~ 50 °C 存储温度: -20 ~ 60 °C
- life：30K小时,不含驱动
- Types of：15S4P WLED
- T215HVN05.1的详细参数如下：
1. 基本信息：类型为a - Si TFT - LCD液晶模组；对角尺寸21.5英寸；物理形状为平面矩形；宽高比16:9。
2. 像素规格：像素数量1920(RGB)×1080（FHD）；像素排列为RGB垂直条状；点间距0.08275×0.24825mm；像素间距0.24825×0.24825mm；显示区域476.64×268.11mm。
3. 光学特性：显示亮度250cd/m²（Typ.）；显示模式为VA，常黑显示，透射式；对比度3000:1（Typ.）（透射）；可视角度89/89/89/89（Typ.）（CR≥10）；响应时间13/5（Typ.）（Tr/Td）ms；支持颜色16.7M（6 - bit + Hi - FRC）。
4. 电子特征：帧频率60Hz；光源类型为WLED，位置是侧入式光源。
5. 信号特征：输入电压5.0V（Typ.）；信号类型为LVDS（2ch，8 - bit）；物理类型为端子。
6. 工作与存储温度：工作温度0~50°C；存储温度 - 20~60°C。
凯显科技
The detailed parameters of T215HVN05.1 are as follows:
1. Basic Information: Type is a-Si TFT-LCD liquid crystal module; diagonal size is 21.5 inches; physical shape is a flat rectangle; aspect ratio is 16:9.
2. Pixel Specifications: Number of pixels is 1920(RGB)×1080 (FHD); pixel arrangement is RGB vertical stripe; dot pitch is 0.08275×0.24825mm; pixel pitch is 0.24825×0.24825mm; display area is 476.64×268.11mm.
3. Optical Characteristics: Display brightness is 250cd/m² (Typ.); display mode is VA, normally black display, transmissive; contrast ratio is 3000:1 (Typ.) (transmissive); viewing angle is 89/89/89/89 (Typ.) (CR≥10); response time is 13/5 (Typ.) (Tr/Td) ms; supported colors are 16.7M (6-bit + Hi-FRC).
4. Electronic Characteristics: Frame frequency is 60Hz; light source type is WLED, and the position is edge-in type light source.
5. Signal Characteristics: Input voltage is 5.0V (Typ.); signal type is LVDS (2ch, 8-bit); physical type is terminal.
6. Operating and Storage Temperatures: Operating temperature is 0~50°C; storage temperature is -20~60°C.
KaiXian Technology
1. Basic Information: Type is a-Si TFT-LCD liquid crystal module; diagonal size is 21.5 inches; physical shape is a flat rectangle; aspect ratio is 16:9.
2. Pixel Specifications: Number of pixels is 1920(RGB)×1080 (FHD); pixel arrangement is RGB vertical stripe; dot pitch is 0.08275×0.24825mm; pixel pitch is 0.24825×0.24825mm; display area is 476.64×268.11mm.
3. Optical Characteristics: Display brightness is 250cd/m² (Typ.); display mode is VA, normally black display, transmissive; contrast ratio is 3000:1 (Typ.) (transmissive); viewing angle is 89/89/89/89 (Typ.) (CR≥10); response time is 13/5 (Typ.) (Tr/Td) ms; supported colors are 16.7M (6-bit + Hi-FRC).
4. Electronic Characteristics: Frame frequency is 60Hz; light source type is WLED, and the position is edge-in type light source.
5. Signal Characteristics: Input voltage is 5.0V (Typ.); signal type is LVDS (2ch, 8-bit); physical type is terminal.
6. Operating and Storage Temperatures: Operating temperature is 0~50°C; storage temperature is -20~60°C.
KaiXian Technology
