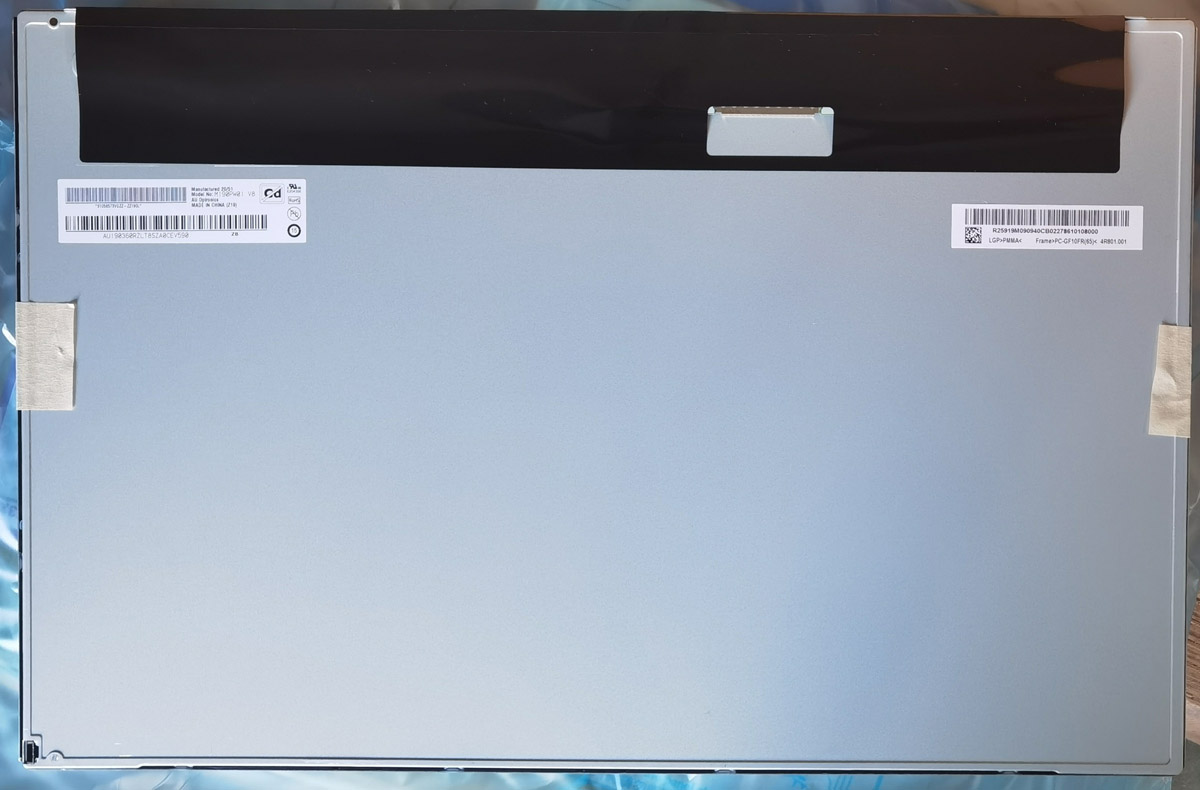

- 友达19寸液晶屏M190PW01 V8规格书工业屏一体机触显广告机
-
- Brand：友达AUO
- Size：19寸宽屏
- Model：M190PW01 V8
- Resolution：1440×900
- Vision：85/85/80/80
- Contrast：1000:1
- brightness：250cd/m²
- interface：30 pins
- Operating temperature：0 °C ~ 50 °C存储温度: -20 ~ 60 °C
- life：30K Hours
- Types of：13S4P WLED
M190PW01 V8 (Alias: M190PW01 V.8) is a 19.0-inch liquid crystal module product launched by AU Optronics Corporation (AUO). It adopts a-Si TFT-LCD technology, is equipped with a WLED backlight, has no backlight driver, and no touch function. As a TN, normally white display, transmissive liquid crystal module product, M190PW01 V8 can provide a display brightness of 250 cd/m², a transmissive contrast ratio of 1000:1, and a viewing angle of 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D). Its response time is 3.6/1.4 (Typ.)(Tr/Td) ms. Since each pixel uses a 6-bit + Hi-FRC grayscale signal, this product can display 16.7 million colors, and its color saturation also reaches 72% (NTSC). In terms of the backlight, this product uses a side-in type light source (bottom) with 13S4P WLED lighting. The service life of the light source is 30,000 hours, and it does not include a backlight driver. M190PW01 V8 adopts an LVDS (2 channels, 8-bit) signal interface, with a total of 30 pins, using terminal connection, and the panel driving voltage is 5.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz. If you plan to use the M190PW01 V8 liquid crystal module for new product development, Panelook® recommends that you consult AU Optronics (AUO) or its agents for the latest production status information and technical information about M190PW01 V8. The panel parameters displayed on Panelook® are all entered by Panelook's electronic engineers based on the specification sheets. Every effort has been made to reduce errors, but the complete accuracy of the parameters cannot be guaranteed. Please refer to the specification sheets! According to the information mastered by Panelook, this product entered mass production in Q1 of 2011 and was discontinued in Q1 of 2019. The current production status is discontinued. Currently, there are 37 spot information and 37 supplier information of M190PW01 V8 on Panelook, and it is one of the main model products in the current Panelook market transactions. Panelook first established the parameters for this model on April 10, 2013, and the parameters were last updated on August 06, 2019. Its operating temperature ranges from 0 °C to 50 °C, and the storage temperature ranges from -20 °C to 60 °C. Based on its features such as white light LED backlight, front-mounted terminals, matte surface, TCO 5.1 compliance; PART NO.: 97.19M09.800, etc., this model is recommended for use in products such as computer monitors.
M190PW01-V8 Basic Parameters
Manufacturer (Productor): AU Optronics/AUO
Product Model (MODEL): M190PW01-V8
Screen Size (Size): 19.0"
Resolution (Resolution): 1440×900
Resolution Abbreviation (Resolution Name): WXGA+
Display Ratio (Display scale): 16:10
Pixel Arrangement (Pixel Arrangement): RGB vertical stripes
Dot Pitch (Pixel Pitch): 0.0945×0.2835 mm
Product Composition (Panel Composition): Liquid crystal panel
Panel Type (Technology): a-Si TFT-LCD
Main Applications (Applications): [Computer Monitor],
Notable Features (Panel Features): [Wide color gamut], [White light LED], [Matte surface], [Wide viewing angle],
M190PW01-V8 Optoelectronic Parameters
Display Mode (Display mode): TN, normally white display, transmissive
Brightness (Luminance): 250 nits
Contrast Ratio (Contrast Ratio): 1000:1
Color (Color): 16.7 million
Color Saturation (Color Saturation): 72% NTSC (CIE1931)
Response Time (Response): 3.6/1.4 (Tr/Td) ms
Viewing Angle (Viewing Angle): 80/80/85/85 (up/down/left/right)
White Field Chromaticity (White Field Chroma): X: 0.313; Y: 0.329
White Field Variation (White Field Dynamic): 1.25 (9 points)
Scanning Frequency (Scanning Frequency): 60Hz
Reverse Scanning (Reverse Scan): No
Signal Type Category (The kind of Singnal): LVDS
Interface Type (Interface): LVDS
Signal Interface Definition (Singnal Interface Definition): BLE-6PINS-CCAACC
Panel Driving Voltage (Drive-screen voltage): 5.0V
Panel Input Current (Input Current): 0.9A
Signal Interface Type (Kind of Singnal Interface): Terminal
Signal Interface Brand (Brand of Singnal Interface): E&T
Signal Interface Model (Model of Singnal Interface): FI-XPB30SRL-HF11
Signal Interface Pin Pitch (Pitch of Singnal Interface): 1 mm
Number of Signal Interface Pins (Pin of Singnal Interface): 6 pins
M190PW01-V8 Structural Parameters
Operating Temperature (Operation Temperature): 0 °C ~ 50 °C
Storage Temperature (Storage Temperature): -20°C ~ 60°C
Surface Treatment (Surface Technology): Matte surface, Hard coating (3H)
Display Area (Active Area): 408.24×255.15 mm
Visible Area (Display Area): 412.24×259.15
External Dimensions (Outline): 428.00× 278.00×7.70 mm
Touch Screen (Touch Panel): None
Lamp Position (Lamp Position): Side-in type light source (bottom)
Backlight Type (Backlight): WLED
Number of Lamps (Lamp Number): 13S4P pcs
Lamp Shape (Lamp Shape): 4 strings
Backlight Life (Life Time of Lamp): 30,000 Hours
Voltage of a Single Lamp (Voltage of Lamp): 44.2V
Current of a Single Lamp (Current of Lamp): 60mA
Built-in Lamp Driver (Driver of Backlight): None
Backlight Interface Type (Kind of Backlight Interface): Terminal
Backlight Interface Brand (Brand of Backlight Interface): E&T
Backlight Interface Model (Model of Backlight Interface): 3707K-Q06N-01
Number of Backlight Interfaces (Quantity of Backlight Interface): 1 pcs
Backlight Interface Pin Pitch (Pitch of Backlight Interface): 1.0 mm
Backlight Interface Definition (Backlight Interface Define ): BLE-6PINS-CCAACC
M190PW01-V8 Packaging and Production Status
Quantity per Box (Quantity Per Box): 8 pcs
Size of the Packaging Box (Size of the Box): 480×270×430 mm (Length×Width×Height)
Gross Weight of the Packaging Box (G.W. of the Box): 14.35 Kg
G150XVN01.0 Original
LQ150X1LG92 Original
M170ETN01.1 Original + Assembled
P170ETN01.0 Original
M190ETN01.0 Original + Assembled
G190ETN01.0 Original + Assembled
G190ETN01.1 Original
G156HTN02.1 Original
M185XTN01.2 Assembled
M190PW01 V8 Assembled
P215HVN01.0 Original
T215HVN01.1 Glass + Assembled
HR215WU1-120 Original
P270HⅤN02.0 Original + Assembled
P320HVN02.0 Original
LC320EUJ-FFE2 Assembled
T320HVN05.6 Assembled
HV320FHB-F40 Glass + Module
T420HVN08.0 Original
LC430EGG-FKM1 Original
|
M190PW01 V8 (别名: M190PW01 V.8)是友达光电股份有限公司 (友达，AUO) 推出的一款采用a-Si TFT-LCD技术的19.0吋液晶模组产品，它装配有WLED背光，无背光驱动，无触摸。作为一款TN，常白显示，透射式液晶模组产品，M190PW01 V8可以提供250 cd/m²的显示亮度 1000:1的透射对比度，以及85/85/80/80 (Typ.)(CR≥10)(L/R/U/D)的可视角度，它的响应时间为3.6/1.4 (Typ.)(Tr/Td) ms。由于每个像素点采用了6-bit + Hi-FRC灰阶信号，此产品可以显示16.7M颜色，其显示的色彩饱和度也达到了72% (NTSC)。背光方面此产品采用了13S4P WLED发光的侧入式光源(底部)，光源的使用寿命为30K小时，不含背光驱动。M190PW01 V8采用了LVDS (2 ch, 8-bit)信号接口，总共30 pins，采用端子连接，驱屏电压为5.0V (Typ.)。它的典型垂直刷新率Fv为60Hz。如果开发新产品想采用M190PW01 V8液晶模组，屏库®建议您向友达 (AUO)或其代理商了解关于M190PW01 V8的最新的生产状态信息和技术信息。屏库®上所显示的面板参数均由屏库电子工程师依据规格书录入，已尽力减少错误，但不能保证参数的完全正确。请以规格书为准！根据屏库掌握的情报此产品于2011年Q1量产，于2019年Q1停产，当前生产状态为已停产。目前M190PW01 V8在屏库上有37条现货信息、37家供应商信息，属于目前屏库市场交易的主力型号产品。屏库于2013年04月10日对此型号首次建立参数，并于2019年08月06日对参数进行了最后更新。它的工作温度为 0 ~ 50°C，存储温度为 -20 ~ 60°C。基于它白光LED背光，端子正装，表面雾面， TCO 5.1 Compliance; PART NO.:97.19M09.800等特征，此型号推荐使用于电脑显示器等产品。 M190PW01-V8 基本参数 |
|
|---|---|
|
制造商(Productor) |
友达/AUO |
| 产品型号(MODEL) | M190PW01-V8 |
| 屏尺寸(Size) | 19.0" |
| 分辨率(Resolution) | 1440×900 |
| 分辨率简称(Resolution Name) | WXGA+ |
| 显示比例(Display scale) | 16:10 |
| 像素排列(Pixel Arrangement) | RGB垂直条状 |
| 点距(Pixel Pitch) | 0.0945×0.2835 mm |
| 产品组成(Panel Composition) | 液晶屏, |
| 面板类型(Technology) | a-Si TFT-LCD |
| 主要用途(Applications) | 【电脑显示器】, |
| 显著特征(Panel Features) | 【广色域】, 【白光LED】, 【雾面】, 【广视角】, |
M190PW01-V8光电参数 |
|
| 显示模式(Display mode) | TN，常白显示，透射式 |
| 亮度(Luminance) | 250 nits |
| 对比度(Contrast Ratio) | 1000:1 |
| 颜色(Color) | 16.7M |
| 色彩饱和度(Color Saturation) | 72%NTSC(CIE1931) |
| 响应时间(Response) | 3.6/1.4 (Tr/Td) ms |
| 可视角度(Viewing Angle) | 80/80/85/85(上/下/左/右) |
| 白场色度(White Field Chroma) | X:0.313; Y:0.329 |
| 白场变动(White Field Dynamic) | 1.25 (9 points) |
| 扫描频率(Scanning Frequency) | 60Hz |
| 反转扫描(Reverse Scan) | No |
| 信号类型大类(The kind of Singnal) | LVDS |
| 接口类型(Interface) | LVDS |
| 信号接口定义(Singnal Interface Definition) | BLE-6PINS-CCAACC |
| 驱屏电压(Drive-screen voltage) | 5.0V |
| 面板输入电流(Input Current) | 0.9A |
| 信号接口类型(Kind of Singnal Interface) | 端子 |
| 信号接口品牌(Brand of Singnal Interface) | E&T |
| 信号接口型号(Model of Singnal Interface) | FI-XPB30SRL-HF11 |
| 信号接口脚距(Pitch of Singnal Interface) | 1 mm |
| 信号接口脚数(Pin of Singnal Interface) | 6 pins |
M190PW01-V8结构参数 |
|
| 工作温度(Operation Temperature) | 0 °C ~ 50 °C |
| 存储温度(Storage Temperature) | -20°C ~ 60°C |
| 表面处理(Surface Technology) | 雾面，Hard coating (3H) |
| 显示区域(Active Area) | 408.24×255.15 mm |
| 可视区域(Display Area) | 412.24×259.15 |
| 外形尺寸(Outline) | 428.00× 278.00×7.70 mm |
| 触摸屏(Touch Panel) | 无 |
| 灯管位置(Lamp Position) | 侧入式光源(底部) |
| 背光类型(Backlight) | WLED |
| 灯管数量(Lamp Number) | 13S4P pcs |
| 灯管形状(Lamp Shape) | 4串 |
| 背光寿命(Life Time of Lamp) | 30K Hours |
| 单一灯管电压(Voltage of Lamp) | 44.2V |
| 单一灯管电流(Current of Lamp) | 60mA |
| 内置灯管驱动器(Driver of Backlight) | 无 |
| 背光接口类型(Kind of Backlight Interface) | 端子 |
| 背光接口品牌(Brand of Backlight Interface) | E&T |
| 背光接口型号(Model of Backlight Interface) | 3707K-Q06N-01 |
| 背光接口数量(Quantity of Backlight Interface) | 1 pcs |
| 背光接口脚距(Pitch of Backlight Interface) | 1.0 mm mm |
| 背光接口定义(Backlight Interface Define ) | BLE-6PINS-CCAACC |
M190PW01-V8包装及生产状态 |
|
| 每箱数量(Quantity Per Box) | 8 pcs |
| 包装箱尺寸(Size of the Box) | 480×270×430 mm (长×宽×高) |
| 包装箱毛重(G.W. of the Box) | 14.35 Kg |
